Start here

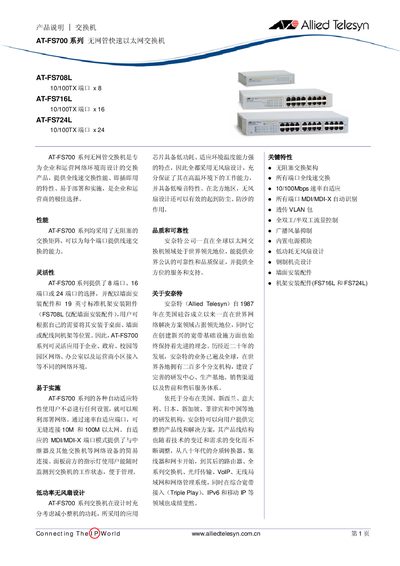

Allied Telesyn AT-FS700 Series Selection Guide
The AT-FS700 series provides unmanaged fast Ethernet switches designed for enterprise and carrier networks. Available in 8‑port (AT‑FS708L), 16‑port (AT‑FS716L) and 24‑port (AT‑FS724L) configurations, the switches offer line‑rate performance, plug‑and‑play deployment and flexible mounting options for desktop, wall or rack installations.
Key specifications include a non‑blocking switching matrix, 10/100 Mbps auto‑negotiating ports with MDI/MDI‑X, low‑power fanless design, steel chassis, and a range of environmental and safety certifications. Ordering information and accessories such as wall‑mount kits and 19‑inch rack kits are also provided. This manual is written in Chinese.
Allied Telesis AT-FS700 specifications
| Maximum packet forwarding rate (10 Mbps) | 14,880 packets/second |
|---|---|
| Maximum packet forwarding rate (100 Mbps) | 148,800 packets/second |
| MAC address table size | 4K |
| Switching buffer (FS708L) | 256K |
| Switching buffer (FS716L) | 512K |
| Port type | 10/100TX RJ‑45 half/full duplex |
| Power supply | 100‑240 V AC, 50‑60 Hz |
| Operating temperature range | 0 °C ~ 40 °C |
All Allied Telesis AT-FS700 documents by type
Questions answered in these manuals
What port configurations are available for the AT‑FS700 series?
The series is offered in three models: AT‑FS708L with 8 ports, AT‑FS716L with 16 ports, and AT‑FS724L with 24 ports.
Does the AT‑FS700 series require any configuration before use?
No configuration is needed; the switches are unmanaged and feature auto‑sensing ports that work plug‑and‑play.
How many Ethernet ports does the AT‑FS708L model have?
The AT‑FS708L provides 8 10/100 Mbps Ethernet ports.
What power supply does the AT‑FS700 series require?
It operates from 100‑240 V AC at 50‑60 Hz.
