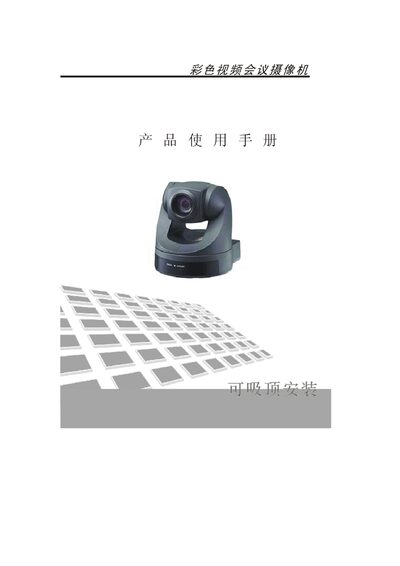

This manual provides safety guidelines, installation steps, and operation instructions for a color video conference camera with 360° pan and 120° tilt.
The guide begins with safety requirements and a list of package contents, followed by detailed diagrams of dimensions, mounting options, and component identification. It explains remote‑control functions, preset position setup, and basic camera adjustments such as pan, tilt, zoom, focus, and back‑light.
Technical specifications are listed at the end, covering motion ranges, speeds, power requirements, video outputs, supported control protocols, and imaging performance. The manual also includes wiring diagrams for RS‑232/RS‑422 interfaces and connection pinouts. This manual is written in Chinese.
| Pan range | 360° |
|---|---|
| Tilt range | +90° / -30° |
| Power input | DC12V (10.8‑13V) |
| Power consumption | 1.0A |
| Operating temperature | 0 °C – 40 °C |
| Storage temperature | -20 °C – 60 °C |
| Dimensions | 141 × 144 × 162 mm |
| Weight | 950 g |
| Image sensor | 1/4 CCD / 1/3" CMOS |
| Resolution | 44万 (SD) / 200万 (HD) |
| Optical zoom | 18× |
| Minimum illumination | 0.7 Lux (F1.4) |
| Supported control protocols | PELCO‑P/D, SONY VISCA |
The camera supports PELCO‑P/D and SONY VISCA protocols with baud rates from 1200 to 38400.
The camera requires a DC12 V power input (10.8 V – 13 V) and consumes about 1.0 A.
