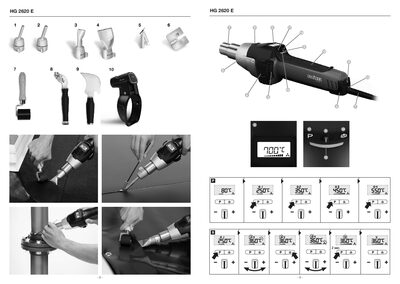

The Steinel HG 2620 E hot air tool manual provides safety guidelines, operation steps, temperature and airflow controls, maintenance and warranty details.
This operating manual explains safe handling of the Steinel HG 2620 E hot air tool, including basic safety precautions such as avoiding electric shock, fire hazards, and proper use of accessories. It also describes the tool’s features like the residual heat indicator, thermal cut‑out protection, and lockable override control function.
The guide covers operation procedures: turning the tool on/off, setting temperature (50‑700 °C) and airflow (150‑500 l/min) with the joystick, using programming modes, and maintaining the device by cleaning the fine dust filter, changing the power cord, or replacing the heating element. Technical specifications and warranty information are listed at the end.
| Voltage | 220‑230 V, 50/60 Hz |
|---|---|
| Maximum power | 2300 W |
| Temperature range | 50‑700 °C, continuously variable |
| Airflow rate | 150‑500 l/min, continuously variable |
| Air pressure | 4000 Pa |
| Nozzle diameter | 30 mm |
| Motor life | ≈ 10 000 h |
| Heater life | ≈ 800 h |
| Protection class | H07 RN‑F 2X1 3.0 mm² |
