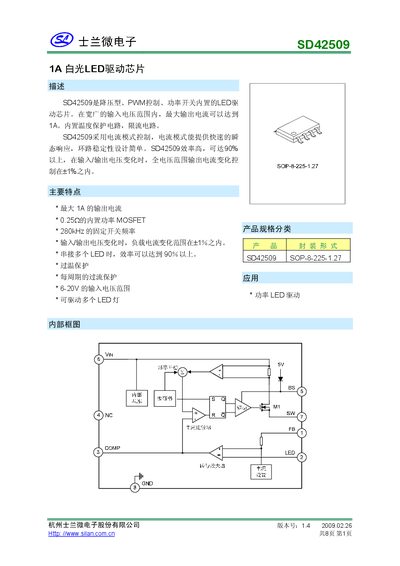

Silan SD42509 White LED Driver Chip Datasheet
The SD42509 is a buck‑type LED driver IC that uses current‑mode control and a fixed 280 kHz switching frequency. It integrates a 0.25 Ω power MOSFET, over‑temperature protection and per‑cycle over‑current protection, delivering up to 1 A output current while maintaining load current variation within ±1 % over a wide input voltage range.
Typical applications include driving single or multiple white LEDs in lighting modules, with recommended external components such as input capacitors >10 µF, output capacitors ≥4.7 µF, and inductors around 47 µH for 1 A operation. The device is supplied in an SOP‑8‑225‑1.27 package and is intended for use in consumer and industrial LED lighting designs. This manual is written in Chinese.
Covers: Features · Electrical Parameters · Pin Description · Typical Application Circuit · Electrical Characteristics · Package Dimensions
Silan SA276 Brushless DC Fan Driver Datasheet
The SA276 driver integrates a Hall‑effect sensor, reference voltage, pre‑amplifier, Schmitt comparator and complementary open‑collector outputs (DO, DOB). It includes a reverse‑voltage protection diode for the IC and is offered in a compact TO‑94 package.
Typical applications include brushless DC fans, brushless DC motors, rotary counters and speed measurement circuits. The datasheet provides absolute‑maximum ratings, electrical parameters, pinout, and example test circuits. This manual is written in Chinese.
Covers: Main Features · Applications · Product Specifications · Absolute Maximum Ratings · Electrical Parameters · Power Dissipation Curve

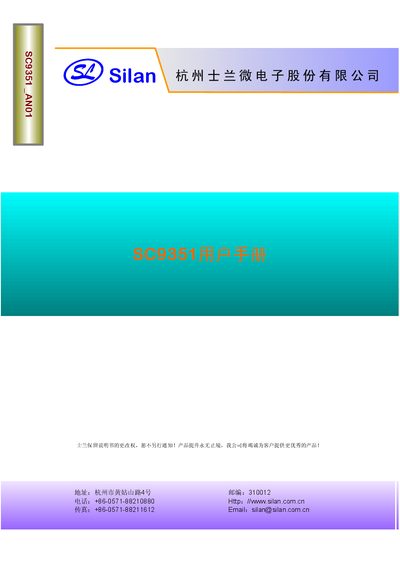

Silan SC9351 MCU User Manual
The SC9351 MCU from Silan follows the classic 8051 architecture while adding modern features such as dual‑clock operation, integrated LDO, and a rich set of on‑chip peripherals. It includes 64 KB flash, 8 KB RAM, UART, SPI, I²C, ADC, RTC and flexible interrupt handling.
The manual provides a product overview, key features, application examples, detailed pin‑out, electrical parameters, CPU core description, peripheral functions, test modes, typical application circuits and package dimensions. It is intended for electronic designers and developers who need to integrate the SC9351 into their projects. This manual is written in Chinese.
Covers: Overview · Main Features · Applications · Product Specification Classification · Internal Block Diagram · Parameter Description
Silan SA1117 1A LDO Regulator Datasheet
The SA1117 is a positive‑voltage, low‑dropout three‑terminal linear regulator designed for 1 A output current. It is available in fixed‑output versions (1.5 V, 1.8 V, 2.5 V, 2.85 V, 3.0 V, 3.3 V, 5.0 V) and an adjustable version with 1 % voltage accuracy. Integrated over‑temperature and current‑limit circuitry makes it suitable for a wide range of electronic products such as handheld computers, battery chargers, and portable devices.
The datasheet provides electrical characteristics, pin descriptions, typical application circuits, and package dimensions for SOT‑89, SOT‑223, TO‑220, TO‑252, and TO‑263 packages. Key parameters include a 1.2 V dropout at 1 A, operating temperature from –40 °C to 125 °C, and recommended input voltage up to 20 V. This manual is written in Chinese.
Covers: Overview · Features · Fixed and Adjustable Output Versions · Electrical Characteristics · Pin Description · Typical Application Circuits
Latest Silan manuals
Silan SD42509 White LED Driver Chip Datasheet
Datasheet 8 pages · 595 KB · ZHThe Silan SD42509 is a buck‑type, PWM‑controlled white LED driver chip with 1 A output, 6‑20 V input, built‑in MOSFET and protection features.
Silan SA276 Brushless DC Fan Driver Datasheet
Datasheet 6 pages · 462 KB · ZHThe Silan SA276 is a brushless DC fan driver with built‑in Hall sensor, wide 3.5‑20 V range and reverse‑voltage protection.
HANGZHOU Silan Electronics SD4870 current mode PWM controller Manual
Silan SC9351 MCU User Manual
User Manual 79 pages · 1.2 MB · ZHThe SC9351 is a 8051‑based 8‑bit MCU with 64 KB flash, 8 KB RAM and multiple peripherals.
Silan SA1117 1A LDO Regulator Datasheet
Datasheet 13 pages · 984 KB · ZHThe SA1117 is a 1 A low‑dropout linear regulator with fixed and adjustable output versions, offering over‑temperature and current‑limit protection.
Silan SA1117 1A LDO Regulator Datasheet
Datasheet 12 pages · 350 KB · ZHThe Silan SA1117 is a 1 A low‑dropout linear regulator with fixed and adjustable output versions, featuring over‑temperature and current‑limit protection.
Silan SB42511 1A White LED Driver Chip PWM Dimming Manual
Datasheet 9 pages · 566 KB · ZHThe Silan SB42511 manual provides specifications, pinout, operation and application guidelines for the 1 A white LED driver with PWM dimming.
Silan SC46166 DC-DC Converter Datasheet
Datasheet 11 pages · 762 KB · ZHThe Silan SC46166 is a 500 kHz, high‑efficiency boost DC‑DC converter with low‑voltage start‑up and ultra‑low quiescent current.
