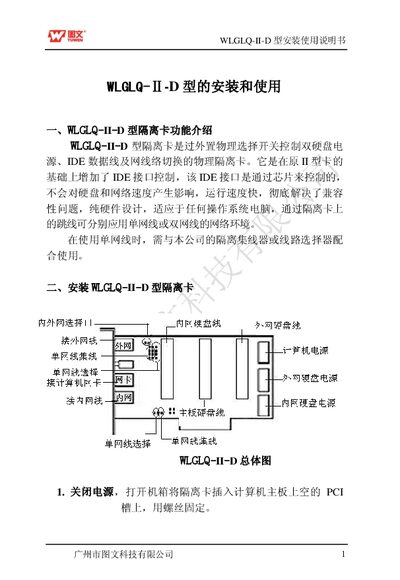

Guangzhou Graphic Technology WLGLQ-II-D Isolation Card Installation Guide
The WLGLQ-II-D isolation card provides hardware‑level switching of dual hard‑drive power, IDE data lines, and network connections via an external physical selector. It adds IDE interface control to the earlier II‑type card, uses chip‑controlled switching that does not affect drive or network speed, and works with any operating‑system computer.
The manual explains how to install the card in a PCI slot, connect IDE and power cables, and configure single‑ or dual‑network setups using jumpers and RJ‑45 ports. It also covers the optional external or internal selection switch and provides usage instructions for switching between internal and external networks. This manual is written in Chinese.
Covers: Function Introduction · Installation · IDE Data Cable Connection · Power Cable Connection · Network Cable Connection · Switch Installation
