PerkinElmer TPS 334 Thermopile Detector Datasheet
The TPS 334 is a thermopile sensor housed in a TO‑5 type package with a 0.7 × 0.7 mm² absorber area and a 30 kΩ thermistor temperature reference. It is designed for temperature measurement applications such as pyrometers and ear thermometers and can be equipped with a G9 (8‑14 mm) filter for precision remote sensing.
The datasheet details absolute maximum ratings, electrical parameters (responsivity 55 V/W, time constant 25 ms, noise voltage 35 nV/√Hz, NEP 0.64 nW/√Hz, detectivity 1.1 × 10⁸ cm√Hz/W), mechanical drawing, filter characteristics, and handling precautions including ESD protection and soldering limits. Quality is ensured by ISO‑9001 certification and lot acceptance testing.
Covers: Scope · General Characteristics · Electrical Parameters · Optical Characteristics · Mechanical Drawing · Quality System

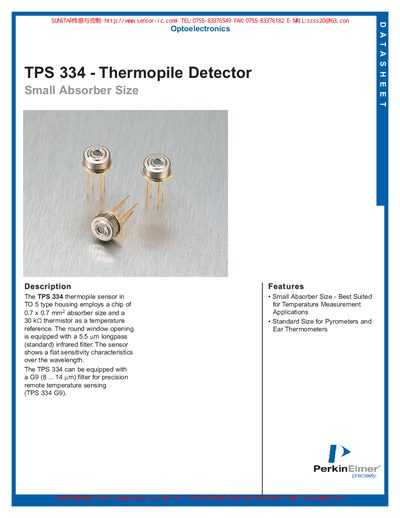

PerkinElmer TPS334 Thermopile Detector Product Specification
The TPS334 is a thermopile infrared detector housed in a TO‑5 package. It features a 0.7 × 0.7 mm absorber area, a 30 kΩ thermistor reference, and a standard 5.5 µm long‑pass infrared filter. The detector is suited for temperature‑measurement applications such as pyrometers and ear thermometers.
The document provides detailed electrical, optical, and mechanical characteristics, handling requirements, and quality‑system information. It also lists the typical performance parameters and environmental limits for the sensor.
Covers: Scope · General Characteristics · Type Characteristics · Electrical Characteristics · Optical Characteristics · Filter Characteristics
Latest Perkin manuals
PerkinElmer TPS 334 Thermopile Detector Datasheet
Datasheet 30 pages · 1.6 MB · ENThe PerkinElmer TPS 334 thermopile detector datasheet provides electrical, optical, mechanical specifications and handling guidelines.
PerkinElmer TPS334 Thermopile Detector Product Specification
Datasheet 32 pages · 2 MB · ENTechnical specifications and handling information for the PerkinElmer TPS334 thermopile detector with a small absorber size.
Which document do I need?
Datasheet
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in Perkin manuals
What is the ambient temperature range for the TPS 334?
The TPS 334 operates from –40 °C up to 100 °C.
How should the TPS 334 be handled to avoid damage?
Avoid electrostatic discharge, do not expose the sensor to aggressive detergents, clean the window with alcohol and a cotton swab, and limit hand or wave soldering to a maximum of 300 °C for less than 10 seconds.
What is the sensitive area of the TPS334 detector?
The detector has a 0.7 × 0.7 mm absorbing area.
From: PerkinElmer TPS334 Thermopile Detector Product Specification
What temperature range can the TPS334 operate in?
It can operate from –40 °C to 100 °C.
From: PerkinElmer TPS334 Thermopile Detector Product Specification
