Nanjing Top Power TP4059 Datasheet
The TP4059 is a complete single‑cell Li‑ion battery charger that provides constant‑current/constant‑voltage operation, programmable charging current up to 600 mA, and built‑in reverse‑polarity protection. It can be powered from a USB port or an external adapter up to 9 V and includes thermal regulation to limit current when the chip temperature rises.
Typical applications include charging seats, power banks, cellular phones, PDAs, MP3 players and Bluetooth devices. The device is supplied in a 6‑pin SOT‑23‑6 package and requires only a few external components (PROG resistor, input and battery bypass capacitors). Pin functions such as CHRG, STDBY and PROG provide status indication and allow manual shutdown or re‑start of the charging cycle. This manual is written in Chinese.
Covers: Overview and Features · Pin Description · Electrical Characteristics · Typical Applications · Charging Current Setting · Status Indicator Pins

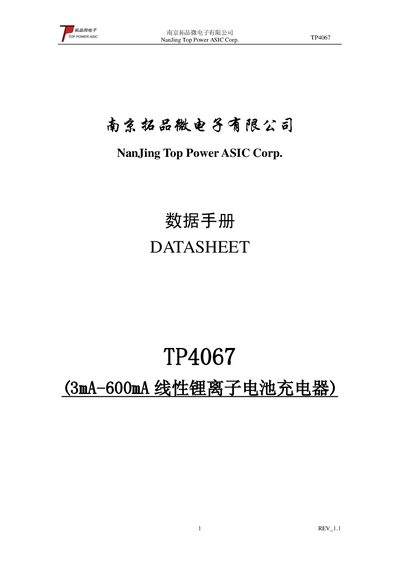

NanJing Top Power TP4067 Linear Lithium Ion Battery Charger Datasheet
The TP4067 is a complete single‑cell lithium‑ion battery charger that integrates battery‑ and input‑reverse‑polarity protection, programmable charging current, and thermal feedback. It operates from USB or an external adapter and is packaged in a 6‑lead SOT‑23‑6 package, making it suitable for portable applications.
Key features include 3 mA‑600 mA programmable charging current, VCC input range up to 8 V, standby current below 65 µA, and automatic termination at C/10. The device provides status pins (CHRG, STDBY) for charging indication and supports a wide temperature range for reliable operation in various environments. This manual is written in Chinese.
Covers: Product Overview · Features · Typical Applications · Pin Configuration · Electrical Characteristics · Thermal Considerations

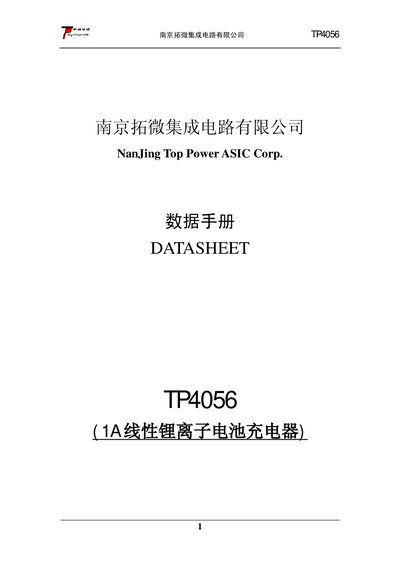

NanJing Top Power TP4056 Datasheet
The TP4056 linear charger is designed for single‑cell Li‑ion or Li‑polymer batteries. It is supplied in SOP‑8/MSOP‑8 packages with a bottom heat‑sink and is suitable for portable devices such as phones, MP3 players, cameras and USB chargers.
Key features include constant‑current/constant‑voltage operation, programmable charge current via the PROG pin, battery‑temperature detection, under‑voltage lockout, automatic re‑charge, dual LED status indicators and a low‑power standby mode of 55 µA. The device also provides internal thermal feedback to limit current when the junction temperature approaches 145 °C. This manual is written in Chinese.
Covers: Typical Applications · Package / Ordering Information · Electrical Characteristics · Pin Functions · Block Diagram and Working Principle · Charging Current Setting
Latest NanJing Top Power manuals
Nanjing Top Power TP4059 Datasheet
Datasheet 12 pages · 808 KB · ZHThe TP4059 is a linear single‑cell Li‑ion battery charger with programmable 600 mA current, reverse‑polarity protection and USB power support.
NanJing Top Power TP4067 Linear Lithium Ion Battery Charger Datasheet
Datasheet 14 pages · 733 KB · ZHThe TP4067 is a single‑cell lithium‑ion battery charger offering 3 mA‑600 mA programmable current, reverse‑polarity protection for battery and input, and…
NanJing Top Power TP4056 Datasheet
Datasheet 17 pages · 361 KB · ZHThe TP4056 is a linear Li‑ion battery charger IC with up to 1 A programmable charge current, USB/adapter input, internal PMOSFET and temperature monitoring.
Which document do I need?
Datasheet
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in NanJing Top Power manuals
What is the maximum charging current of the TP4059?
The TP4059 can deliver up to 600 mA of charging current, which can be programmed via the PROG pin resistor.
How does the TP4059 protect against reverse battery connection?
It includes internal reverse‑polarity protection using a PMOSFET, so no external diode or detection resistor is required.
What is the charging current range of the TP4067?
The TP4067 supports a programmable charging current from 3 mA up to 600 mA.
From: NanJing Top Power TP4067 Linear Lithium Ion Battery Charger Datasheet
How is the charging current set on the TP4067?
Charging current is set by connecting a precision resistor between the PROG pin and ground; the resistor value determines the current.
From: NanJing Top Power TP4067 Linear Lithium Ion Battery Charger Datasheet
How is the charge current programmed on the TP4056?
The charge current is set by connecting an external resistor between the PROG pin and ground; the resistor value determines the current according to the formula given in the datasheet.
What is the standby current after charging is complete?
The device enters a low‑power standby mode drawing about 55 µA.
