Sunstar HB100 Microwave Motion Sensor User Manual

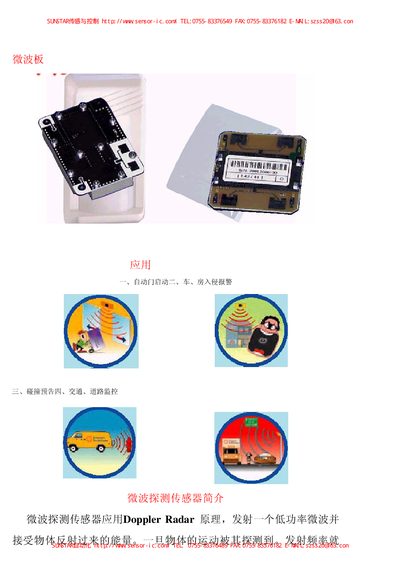

User Manual 8 pages · 581 KB · ZH
The HB100 is a compact, low‑power microwave Doppler sensor used for applications such as automatic doors, intrusion alarms, traffic monitoring and speed testing. It operates by transmitting a 10.5 GHz signal and detecting frequency‑shifted reflections from moving objects.
The manual provides wiring details (+5 V, GND, IF), recommended mounting orientation, antenna radiation pattern, and key electrical specifications including supply voltage, current consumption, detection range and operating temperature. This manual is written in Chinese.
Sunstar HB100 specifications
| Operating frequency | 10.520 – 10.530 GHz |
|---|---|
| Radiated power | 12 – 20 dBm |
| Supply voltage | 4.75 – 5.25 VDC |
| Current consumption | 30 – 40 mA |
| Detection range | 15 – 20 m |
| Operating temperature | -15 °C to 55 °C |
All Sunstar HB100 documents by type
User Manual 1
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Other documents 1
Questions answered in these manuals
What is the detection range of the HB100 sensor?
The sensor can detect motion up to 15–20 meters.
What supply voltage does the HB100 require?
It operates from a 4.75 V to 5.25 V DC supply.
