Key facts
- Brand
- SINAMICS
- Model
- V80
- Category
- Automation control Equipment
- Industry
- Industrial
- Documents
- 2
- Languages
- ZH
- Last added
- 2011-09-29
Start here

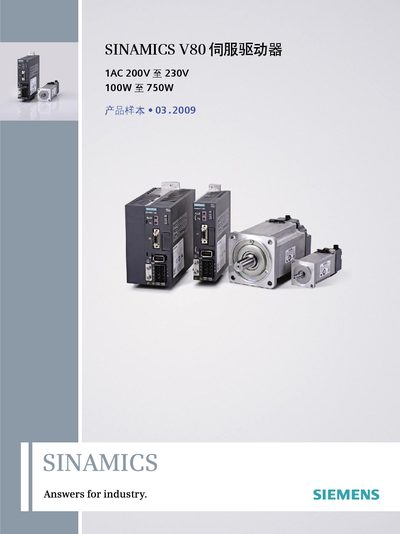

Siemens V80 Servo Driver Product Sample
The SINAMICS V80 servo driver is presented as a compact motion‑control solution that works with Siemens PLCs and HMIs. The document provides a system overview, component descriptions, and wiring examples for integrating the driver with a servomotor.
Technical data such as input voltage (200 V‑230 V AC, 50/60 Hz), power range (100 W‑750 W), pulse resolution options and signal specifications are listed, together with installation requirements and environmental limits. This manual is written in Chinese.
SINAMICS V80 specifications
| Input voltage | 1 AC 200 V to 230 V, 50/60 Hz |
|---|---|
| Power range | 100 W to 750 W |
| Output signal limits | 30 V max, 50 mA max |
All SINAMICS V80 documents by type
Questions answered in these manuals
What is the recommended installation temperature for the V80 driver?
The driver should be installed in an environment where the surrounding temperature stays below 55 °C, preferably at or under 40 °C.
What input voltage range does the V80 support?
It accepts a single‑phase AC input from 200 V to 230 V at 50 Hz or 60 Hz.
What is the supply voltage range for the SINAMICS V80?
The driver operates from a single‑phase AC supply of 200 V to 230 V at 50/60 Hz.
What power ratings are available for the V80 series?
The V80 is offered with rated powers from 100 W up to 750 W.
