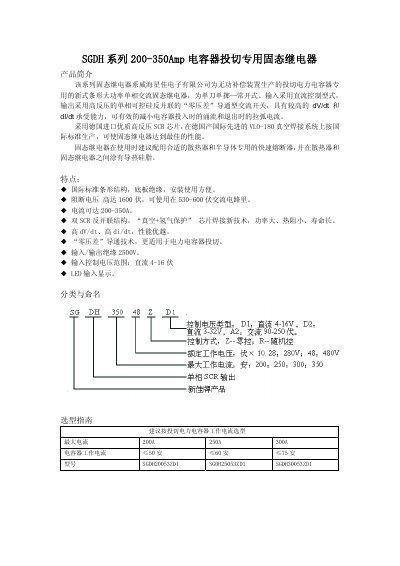

SGDH series 200-350Amp capacitor Implement Switching private solid state relay Manual
The SGDH series solid‑state relays are single‑pole‑single‑throw (normally‑open) devices designed for capacitor switching in reactive power compensation equipment. They feature a DC control input, high‑reverse‑voltage SCR parallel structure, and a "zero‑voltage‑difference" conduction method that reduces surge and arc currents during capacitor insertion and removal.
The relays are built with German‑imported high‑reverse‑voltage SCR chips and vacuum‑welded construction, offering high dV/dt and dI/dt capability, up to 1600 V blocking voltage, and rated currents of 200 A, 250 A, or 300 A. Recommended installation includes a suitable heat sink, fast‑acting semiconductor fuse, and thermal grease between the device and heat sink. This manual is written in Chinese.
SGDH series 200-350Amp specifications
| Blocking voltage | 1600 V |
|---|---|
| Rated current | 200‑350 A |
| Input control voltage range | 4‑16 VDC |
| Input/Output insulation | 2500 V |
| Surge current (20 ms max) | 2500 A (200 A model) |
Source: SGDH series 200-350Amp capacitor Implement Switching private solid state relay Manual
All SGDH series 200-350Amp documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the recommended control voltage range for the SGDH relay?
The relay operates with a DC control voltage of 4 to 16 V.
From: SGDH series 200-350Amp capacitor Implement Switching private solid state relay Manual
What is the maximum blocking voltage of the SGDH series?
The maximum blocking voltage is 1600 V.
From: SGDH series 200-350Amp capacitor Implement Switching private solid state relay Manual
What control voltage range should be used for DC input?
The relay accepts a DC control voltage of 4 V to 16 V.
From: Xingjia Electronics SGDH Series 200-350Amp Solid State Relay Manual
What is the recommended cooling method for the relay?
Use an appropriate heat sink and apply thermal grease between the heat sink and the relay.
From: Xingjia Electronics SGDH Series 200-350Amp Solid State Relay Manual
