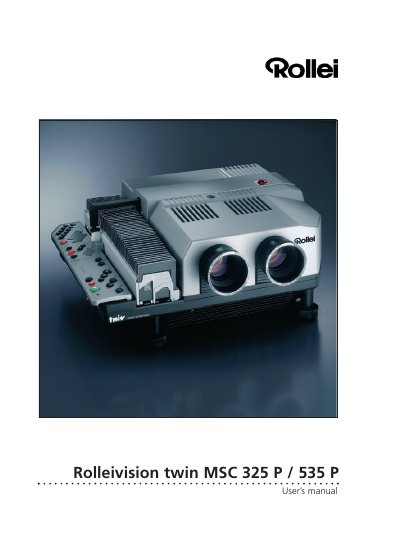

Rollei MSC 325 P / 535 P Projector User Manual
This manual covers the Rollei Rolleivision Twin MSC 325 P and MSC 535 P compact dissolve projectors. It describes the components, controls, and safety information, then guides you through installation, lens selection, magazine loading, focusing, and image registration.
Key sections include programming basics and advanced techniques, computer and sync‑pulse control, troubleshooting tips, and a full specifications table with lamp, power, and dimension data. The document also lists optional accessories and provides wiring diagrams for external sync‑pulse generators. This manual is written in German.
Rollei 535 P specifications
| Type | Compact dissolve projector for 24×36 mm slides |
|---|---|
| Power supply | 220‑240 V AC, auto‑adjusts line frequency |
| Default dissolve time | 2 seconds (selectable 0.1, 3, 6 s) |
| Illumination (MSC 535 P) | Four 24 V/250 W halogen lamps |
| Illumination (MSC 325 P) | Two 24 V/150 W halogen lamps |
| Dimensions (W×H×D) | 344 mm × 149 mm × 290 mm |
| Weight | ≈9.5 kg (MSC 325 P), ≈6.0 kg (MSC 535 P) |
