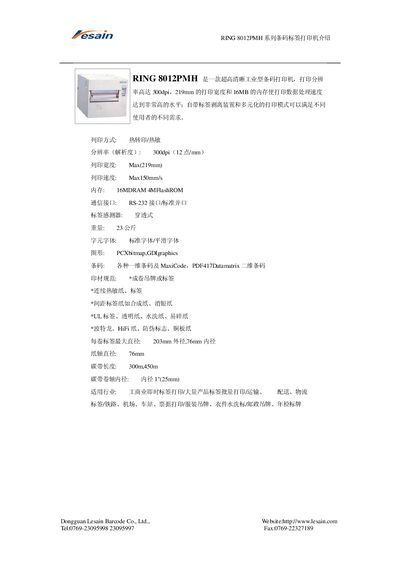

RING 8012PMH Barcode Label Printer User Manual
The RING 8012PMH is a high‑resolution barcode label printer offering a 300 dpi (12 dots/mm) printing resolution and a maximum print width of 219 mm. It supports a variety of barcode formats such as MaxiCode and PDF417, and can print on different label materials including metal, plastic, and washable fabrics.
The printer includes 16 MB DRAM and 4 MB Flash ROM for data storage, and communicates via an RS‑232 interface. It features a built‑in sensor for label detection and offers multiple font options. The device weighs approximately 23 kg and is suitable for applications in logistics, retail, and manufacturing. This manual is written in Japanese.
RING 8012PMH specifications
| Printing Method | Thermal transfer / Direct thermal |
|---|---|
| Resolution | 300 dpi (12 dots/mm) |
| Print Width | 219 mm |
| Print Speed | 150 mm/s |
| Memory | 16 MB |
| Communication Interface | RS‑232 and standard parallel port |
| Label Sensor | Through‑type |
| Maximum Label Roll Diameter | 203 mm outer, 76 mm inner |
| Ribbon Length | 450 m |
| Ribbon Inner Diameter | 25 mm |
All RING 8012PMH documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What printing methods does the RING 8012pmhPMH support?
It supports both thermal transfer and direct thermal printing.
What is the maximum print resolution of the printer?
The printer can print at up to 300 dpi (12 dots per millimeter).
What is the printing resolution of the RING 8012PMH?
The printer provides a resolution of 300 dpi (12 dots per mm).
Which communication interface does the printer use?
It uses an RS‑232 interface for data communication.
