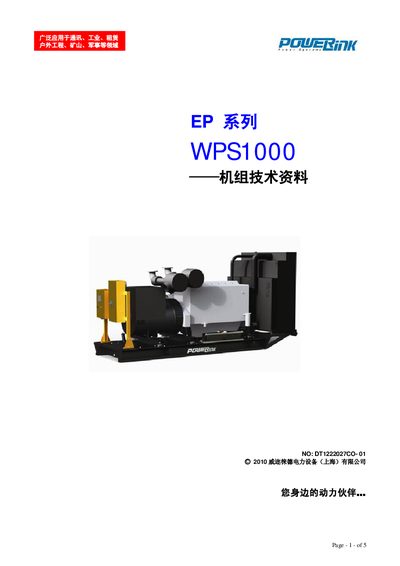

POWERLink EP seriesWPS1000 Machine Group technology data
The PowerLink WPS1000 is a three‑phase generator set designed for communications, industrial, mining, military and other outdoor applications. It delivers up to 800 kW (1000 kVA) at 380‑440 V, 50 Hz, with a rated speed of 1500 rpm and a noise level of 100 dB.
The unit combines a Perkins 4008TAG2A engine with a LSA50.2S4 generator, offering high efficiency (96.39 %), low harmonic distortion (<2 %) and robust control options via PLC‑702 or PLC‑5220 modules. Dimensions are 4550 × 2060 × 3080 mm and the weight is 7585 kg. This manual is written in Chinese.
PowerLink WPS1000 specifications
| Rated Power (kW) | 800 |
|---|---|
| Rated Power (kVA) | 1000 |
| Voltage | 380‑440 V |
| Frequency | 50 Hz |
| Speed | 1500 rpm |
| Noise Level | 100 dB |
| Efficiency (rated) | 96.39 % |
| Harmonic Distortion (TIF) | <2 % |
| Engine Brand | Perkins |
| Generator Brand | Liselma |
Source: POWERLink EP seriesWPS1000 Machine Group technology data
All PowerLink WPS1000 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the rated power of the WPS1000?
The WPS1000 is rated at 800 kW (1000 kVA) when supplied at 380 V.
From: POWERLink EP seriesWPS1000 Machine Group technology data
Which engine brand is used in the WPS1000?
The generator set uses a Perkins engine.
From: POWERLink EP seriesWPS1000 Machine Group technology data
