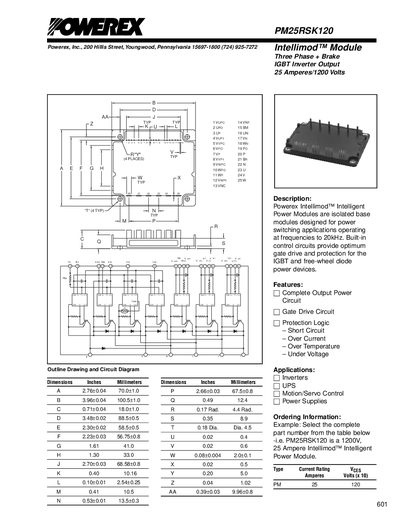

Powerex PM25RSK120 Intellimod Module Datasheet
The Powerex PM25RSK120 Intellimod™ Module is a three‑phase plus brake IGBT inverter output power module designed for switching applications up to 20 kHz. It provides built‑in gate‑drive and protection circuitry for the IGBT and free‑wheel diode devices.
The document lists mechanical dimensions, absolute maximum ratings, detailed electrical characteristics for the control, inverter and brake sectors, as well as thermal data and recommended operating conditions.
Powerex PM25RSK120 specifications
| Current Rating | 25 Amperes |
|---|---|
| Voltage Rating | 1200 Volts |
| Module Weight (Typical) | 130 Grams |
| Junction Temperature Range | -20 °C to 150 °C |
| Isolation Voltage (AC 1 min, 60 Hz) | 2500 V RMS |
| Collector Dissipation (Inverter) | 100 W |
All Powerex PM25RSK120 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the current rating of the PM25RSK120 module?
The module is rated for 25 Amperes.
What is the maximum isolation voltage of the PM25RSK120?
It can withstand 2500 V RMS AC for 1 minute at 60 Hz.
What is the maximum continuous collector current for the inverter sector?
The inverter sector is rated for a continuous collector current of 25 A.
What protection features are built into the module?
The module includes short‑circuit, over‑current, over‑temperature, and under‑voltage protection.
