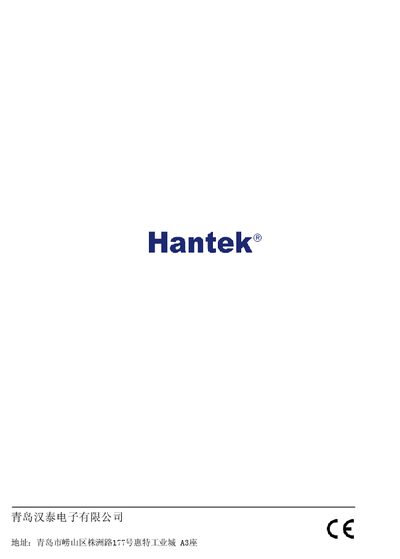

Hantek DSO1000 Series Handheld Wave Table User Manual
This manual covers the Hantek DSO1000 series handheld oscilloscope, describing its features, safety information, and proper usage. It includes detailed specifications such as bandwidth, sampling rates, display resolution, and memory depth.
The document also provides step‑by‑step operating procedures, maintenance tips, and troubleshooting advice to help users get the most out of the device.
Hantek DSO1000 specifications
| Bandwidth | 60 MHz (DSO1060) / 200 MHz (DSO1200) |
|---|---|
| Maximum Real‑time Sample Rate | 150 MSa/s (DSO1060) / 500 MSa/s (DSO1200) |
| Memory Depth | 32 K points (single‑channel) / 16 K points per channel (dual‑channel) |
| Display | 5.7‑inch TFT LCD, 320 × 240 pixels, LED backlight |
| USB Interface | USB 2.0 |
| Power Supply | AC 100‑240 V, 50‑60 Hz; DC 8.5 V @ 1.5 A |
| Battery Runtime | Up to 6 hours |
| Dimensions | 245 × 163 × 52 mm |
| Weight | 1.2 kg |
Source: Hantek DSO1000 Series (1060/1200) Handheld Oscilloscope User Manual
All Hantek DSO1000 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the bandwidth of the DSO1060 model?
The DSO1060 model has a bandwidth of 60 MHz.
From: Hantek DSO1000 Series (1060/1200) Handheld Oscilloscope User Manual
How long can the built‑in battery power the oscilloscope?
The internal battery can power the device for up to six hours.
From: Hantek DSO1000 Series (1060/1200) Handheld Oscilloscope User Manual
What bandwidth options are available for the DSO1000 series?
The series offers bandwidths of 5 MHz (DSO1000A3l), 6 MHz (DSO1000A3l), 200 MHz (DSO1200), and 600 MHz for both DSO1600 and DSO1600H models.
What is the display resolution of the handheld oscilloscope?
The device uses a 320 × 240 pixel LCD display.
