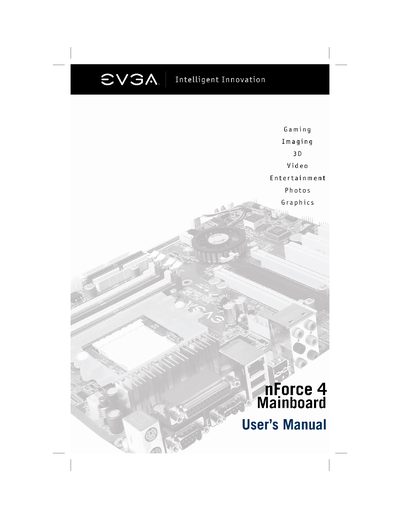

EVGA 123-K8-NF47-XX Motherboard User Manual
This manual covers the EVGA 123-K8-NF47-XX motherboard built on the NVIDIA nForce4 SLI x16 chipset. It details the board's features, specifications, layout diagram, jumper settings, and supported AMD 939‑pin processors such as Athlon FX 64, Athlon 64 X2, and Sempron.
The guide walks users through hardware installation, BIOS configuration, driver installation, and includes appendices with POST codes, warranty information, support contacts, and troubleshooting tips for common issues like power errors, memory problems, and CMOS clearing.
EVGA 123-K8-NF47-XX specifications
| Form factor | ATX |
|---|---|
| Chipset | NVIDIA nForce4 SLI x16 |
| CPU socket | 939 |
| Supported CPUs | AMD Athlon FX 64, Athlon 64 X2, Athlon 64, Sempron (939‑pin) |
| Memory sockets | 4 x 184‑pin DDR |
| Maximum memory | 4.0 GB |
| Expansion slots | PCI‑Express x16 x2, PCI‑Express x1 x2, PCI x3 |
| Integrated LAN | Marvell Gigabit LAN and NVIDIA Giga‑LAN |
| USB ports | 4 ports + 4 headers (total 10 USB 2.0) |
| Firewire | IEEE 1394 support |
All EVGA 123-K8-NF47-XX documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
Which AMD CPUs are supported by the EVGA 123‑K8‑NF47‑XX motherboard?
It supports AMD 939‑pin processors including Athlon FX 64, Athlon 64 X2, Athlon 64 and Sempron.
How much memory can the motherboard handle?
The board can be expanded to a maximum of 4.0 GB of DDR memory.
Which AMD CPUs are supported by the 123‑K8‑NF47‑XX motherboard?
It supports AMD Athlon FX 64 (FX55, FX57, FX60), Athlon 64 X2 dual‑core, standard Athlon 64, and Sempron processors that use the 939‑pin socket.
What is the maximum memory capacity of this board?
The board can hold up to 4 GB of DDR memory using DDR266, DDR333, or DDR400 modules.
