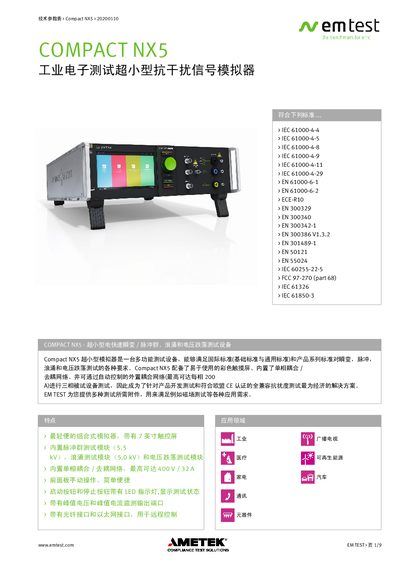

EM TEST Compact NX5 Product Datasheet
The Compact NX5 is a small‑size, multi‑function test simulator that meets a wide range of international EMC standards. It features a 7‑inch color touch screen, built‑in single‑phase coupling/decoupling network, and optional three‑phase external coupling network up to 200 A per phase for comprehensive product testing and CE certification.
The device can be operated locally via the front panel or remotely through Ethernet, USB, or fiber‑optic interfaces using the iec.control software, which also generates compliance reports. A variety of accessories and optional coupling networks expand its testing capabilities for burst, surge, voltage dip, and magnetic field tests. This manual is written in Chinese.
EM TEST Compact NX5 specifications
| Burst test voltage range | 200 V – 5,500 V ±10% |
|---|---|
| Maximum surge short‑circuit current | 2,500 A ±10% |
| Power consumption | ≈ 75 W |
| Operating temperature range | 10 °C – 35 °C |
| Three‑phase coupling current per phase | up to 200 A |
All EM TEST Compact NX5 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Which EMC standards does the Compact NX5 comply with?
It complies with IEC 61000‑4‑4, IEC 61000‑4‑5, IEC 61000‑4‑8, IEC 61000‑4‑9, IEC 61000‑4‑11, IEC 61000‑4‑29, EN 61000‑6‑1, EN 61000‑6‑2, and several other related standards.
What is the maximum current rating of the three‑phase coupling network?
The external three‑phase coupling network can handle up to 200 A per phase.
What is the maximum burst voltage of the Compact NX5?
The Compact NX5 can generate burst voltages up to 5.5 kV.
How can the Compact NX5 be controlled remotely?
It can be controlled via its built‑in Ethernet, USB or optical interface.
