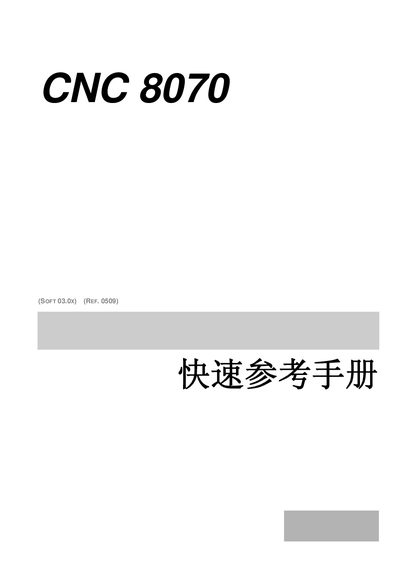

CNC 8070 Display Screen Quick Reference Manual
This manual provides concise instructions for using the CNC 8070 display screen. It explains the various work modes such as Jog, MDI, and multi‑pass, and shows how to switch between them with keyboard shortcuts.
The guide also details interface operations, tool table handling, calibration functions, and file management commands, helping operators perform common tasks efficiently. This manual is written in Japanese.
All CNC 8070 documents by type
The shortest path to a working setup, usually only a few pages.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Disassembly, diagnostics and part numbers, for repair.
Questions answered in these manuals
How do I switch to Jog mode?
Press [CTRL] + [F7] to activate Jog mode.
What shortcut saves the current program?
Press [CTRL] + [G] to save the program.
What safety standards does the Fagor CNC 8070 meet?
It complies with EN 60204-1, EN 50081-2, EN 55011, EN 61000-3-2 and EN 61000-3-3.
Which communication protocols are supported by the CNC 8070?
The controller supports CAN and Sercos communication interfaces.
What does the #PROBE 1 function do?
#PROBE 1 is used for tool radius measurement.
How is rapid positioning performed?
Rapid positioning is executed with the G00 command.
