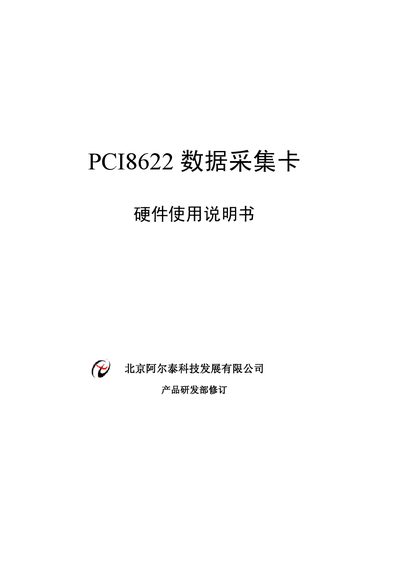

Altai PCI8622 Data Acquisition Card User Manual
User Manual 34 pages · 1.9 MB · ZH
The Altai PCI8622 is a PCI‑bus data acquisition card designed for laboratory, quality‑control and industrial monitoring applications. It provides high‑speed, high‑precision analog and digital I/O, as well as timing/counter functions.
This manual describes the card’s functional overview, component layout, signal connectors, usage of each feature, calibration procedures, and warranty information. It includes detailed pin definitions, configuration options, and troubleshooting guidance. This manual is written in Chinese.
ALTAI PCI8622 specifications
| Input voltage range | +10V, +5V, +2.5V, 0‑10V, 0‑5V |
|---|---|
| Conversion accuracy | 16 bit |
| Sampling rate | 1 Hz – 250 kHz |
| Analog input channels | 32 single‑ended, 16 differential |
| Digital input channels | 16 |
| Digital output channels | 16 |
| Counter/timer maximum frequency | 20 MHz (16‑bit) |
| Operating temperature range | -40 °C to +85 °C |
| Storage temperature range | -40 °C to +120 °C |
All ALTAI PCI8622 documents by type
User Manual 1
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Other documents 1
Questions answered in these manuals
How many analog input channels does the PCI8622 provide?
It provides 32 single‑ended and 16 differential analog input channels.
What is the maximum sampling rate of the PCI8622?
The card can sample at rates from 1 Hz up to 250 kHz.
