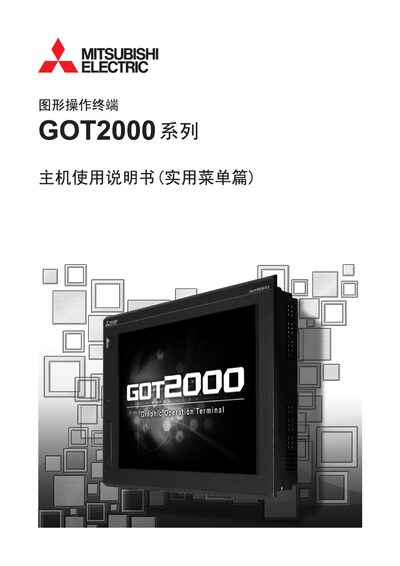

This manual provides safety, design, installation, wiring, testing, and handling guidelines for the Mitsubishi Electric GOT graphical operator terminal.
The safety manual outlines precautions that must be observed when using the Mitsubishi Electric GOT graphical operator terminal. It covers design warnings, installation rules, wiring requirements, testing procedures, and handling of accessories such as touch panels, batteries, and storage devices.
Key sections include design warnings about output signals, installation torque specifications, cable separation distances, and procedures for safe power‑off before any wiring or maintenance work. The document also details disposal, transport, and environmental considerations for the terminal and its components. This manual is written in Chinese.
| Mounting bolt torque (No.2 screwdriver) | 0.36–0.48 N·m |
|---|---|
| Terminal bolt torque (ground and power terminals) | 0.5–0.8 N·m |
| Minimum cable separation distance | ≥10 mm |
They should be kept at least 10 mm apart to avoid noise‑induced false operation.
All external power supplies must be completely disconnected before starting wiring or maintenance.
Use a torque of 0.36 to 0.48 N·m with a No.2 screwdriver.
