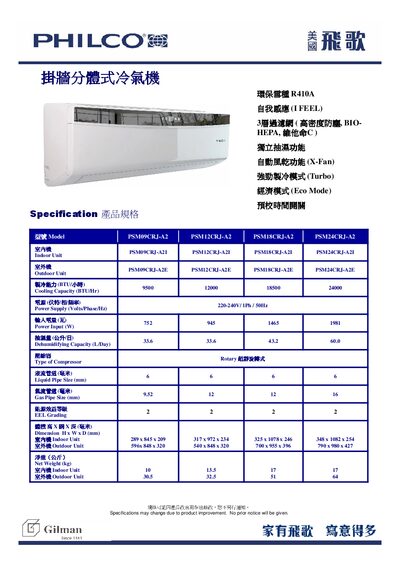

Product specifications for the PSM09CRJ-A2, PSM12CRJ-A2, PSM18CRJ-A2, and PSM24CRJ-A2 wall‑mounted split air conditioners, covering cooling capacity, power…
This document provides the technical specifications for four wall‑mounted split air‑conditioner models (PSM09CRJ‑A2, PSM12CRJ‑A2, PSM18CRJ‑A2, PSM24CRJ‑A2). It lists the refrigerant type (R410A), the I FEEL sensor, a three‑layer filter system, independent dehumidifying, automatic wind‑dry, turbo cooling, eco mode and a programmable timer.
Key data include cooling capacity (9500‑24000 BTU/h), power input (752‑1981 W), dehumidifying capacity (33.6‑60 L/day), rotary compressor, pipe sizes, energy‑efficiency rating (EEL 2), dimensions and net weight for both indoor and outdoor units. This manual is written in Chinese.
| Cooling Capacity (BTU/h) | 9500 – 24000 |
|---|---|
| Power Input (W) | 752 – 1981 |
| Dehumidifying Capacity (L/day) | 33.6 – 60.0 |
| Compressor Type | Rotary 超靜旋轉式 |
| Energy Efficiency Level (EEL Grading) | 2 |
The units use the environmentally friendly R410A refrigerant.
The PSM09CRJ-A2 provides a cooling capacity of 9,500 BTU per hour.
The dehumidifying function can remove 33.6 liters of water per day.
