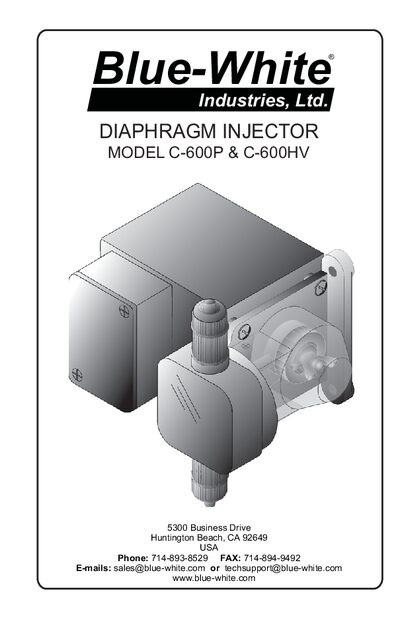

Installation, operation, maintenance and specifications for the Blue-White Diaphragm Injector C‑600P and C‑600HV.
The Blue‑White Diaphragm Injector is a positive‑displacement metering pump designed for chemical injection into piping systems. It features a top‑mounted mechanical flow‑rate adjustment knob and optional on/off cycling timers. The manual covers safety precautions, installation guidelines, wiring, tubing, and routine maintenance.
Detailed sections include specifications, features, step‑by‑step installation, operating adjustments, priming procedures, cleaning instructions, an exploded view, parts list, warranty information, and WEEE disposal guidance.
| Maximum Working Pressure (C‑600P) | 125 psig / 8.6 bar |
|---|---|
| Maximum Working Pressure (C‑600HV) | 20 psig / 1.37 bar |
| Maximum Fluid Temperature | 130 °F / 54 °C |
| Ambient Temperature Range | 14 °F to 110 °F (-10 °C to 43 °C) |
| Maximum Viscosity | 1,000 cP |
| Maximum Suction Lift | 10 ft water |
| Power Requirements (115 V 60 Hz) | 45 W |
| Dimensions (C‑600P) | 6‑1/2" H × 6‑1/2" W × 5‑3/4" D |
| Weight | 8 lb |
The C‑600P model is rated for a maximum working pressure of 125 psig (8.6 bar).
Mount the pump near the chemical supply tank, keep the outlet tubing short, and ensure the installation does not create a cross‑connection with the drinking water supply, following local plumbing codes.
Proper eye and skin protection must be worn during installation and servicing of the pump.
