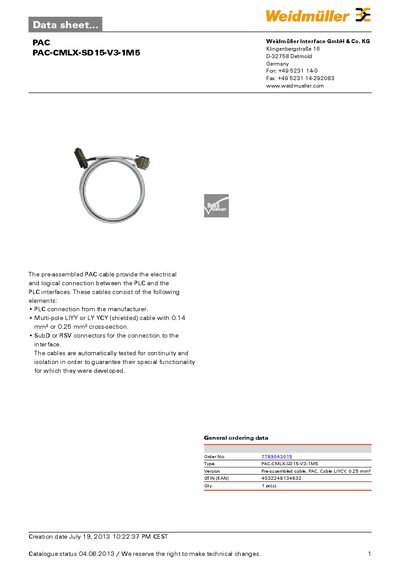

Technical specifications for the Weidmüller PAC-CMLX-SD15-V3-1M5 pre‑assembled PAC cable, including dimensions, electrical data and approvals.
The PAC-CMLX-SD15-V3-1M5 is a pre‑assembled PAC cable that provides the electrical and logical connection between a PLC and its interfaces. It features a shielded LIYY or LY YCY cable with a 0.25 mm² cross‑section, a SUB‑D female 15‑pole interface connector and a ROCKWELL COMPACT LOGIX PLC connector.
Key specifications include a 1.5 m cable length, rated voltage up to 60 Vdc/25 Vac, permissible current of 1 A per path (3 A total), operating temperature from –10 °C to +50 °C, and compliance with RoHS. The cable is tested for continuity and isolation and carries the necessary eClass approvals.
| Cable length | 1.5 m |
|---|---|
| Wire cross‑section | 0.25 mm² |
| Rated voltage | ≤ 60 Vdc / ≤ 25 Vac |
| Permissible current per path | 1 A |
| Total current (max) | 3 A |
| Operating temperature | -10 °C to +50 °C |
| Storage temperature | -10 °C to +60 °C |
| Net weight | 283.5 g |
| PLC side connector | ROCKWELL COMPACT LOGIX 1769-RTBN 18P |
| Interface connector | SUB‑D FEMALE 15P |
| Resistance | ≤ 80 mΩ/m |
| High voltage test | 1 kV/1 s |
| Approvals | RoHS Conform |
The cable is 1.5 m long.
The PLC side uses a ROCKWELL COMPACT LOGIX 1769‑RTBN 18‑pin connector, and the interface side uses a SUB‑D female 15‑pin connector.
The cable is rated for up to 60 Vdc or 25 Vac, with a maximum of 1 A per path and 3 A total.
It can operate between –10 °C and +50 °C.
