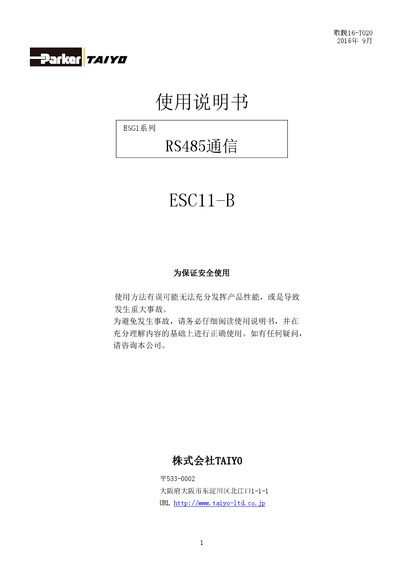

The Taiyo ESC11-B user manual provides safety instructions, RS485 communication setup, wiring diagrams, command reference, and troubleshooting for the ESG1…
This manual explains safe operation of the ESG1 series electric gripper controller, including required safety precautions and proper handling to avoid accidents. It also lists the documents that should be consulted before use.
The guide details RS485 communication configuration, wiring connections for PC, USB, and PLC interfaces, command formats, timing diagrams, and troubleshooting procedures such as alarm clearing and error code interpretation. This manual is written in Japanese.
| Actuator type range | 0–65535 |
|---|---|
| Positive soft limit range | 0–999.9 (0.1 mm units) |
| Maximum program speed | 1–100 % |
| Acceleration range | 1–100 % |
A 220 Ω resistor should be attached to the last controller on the RS485 line.
Use the command listed in section 9.6.4 to clear alarm records.
Error 01h means an overload condition; reduce load, lower acceleration, or check the motor and power supply.
