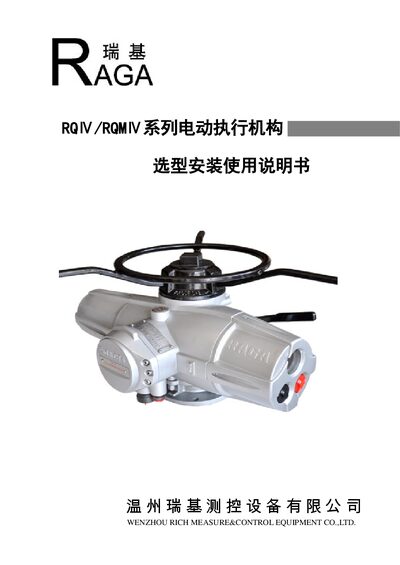

This manual details the overview, technical specs, selection data, installation, operation, debugging and maintenance of Rich RQIV/RQMIV electric actuators.
The RQIV/RQMIV series electric actuators are smart, non‑intrusive devices with a graphic LCD that displays torque, valve position, limits and alarms. They feature automatic protection, explosion‑proof design (ExdIICT4) and can be configured for field‑bus communication, making them suitable for oil, power, metallurgy and water‑treatment industries.
The document provides comprehensive information on technical parameters, selection tables, mechanical interfaces, installation procedures, operation modes (manual, local, remote), diagnostics, and optional functions such as inertia braking, electronic lock and battery backup for position retention. This manual is written in Chinese.
| Input signal types | 4‑20 mA, 1‑5 VDC, 24 VDC pulse/level, field‑bus |
|---|---|
| Power supply | 380 VAC/50 Hz, 220 VAC/50 Hz, or custom |
| Protection level | IP68 |
| Explosion‑proof rating | ExdIICT4 |
| Operating temperature range | -30 °C ~ +70 °C |
| Torque setting range | 30 % ~ 100 % of rated torque |
| Output speed range | 3.5 rev ~ 2040 rev, resolution 11.5° |
The actuator is rated IP68.
It complies with the ExdIICT4 explosion‑proof standard.
It can operate from –30 °C to +70 °C.
Supported inputs are 4‑20 mA, 1‑5 VDC, 24 VDC pulse/level, and field‑bus signals.
