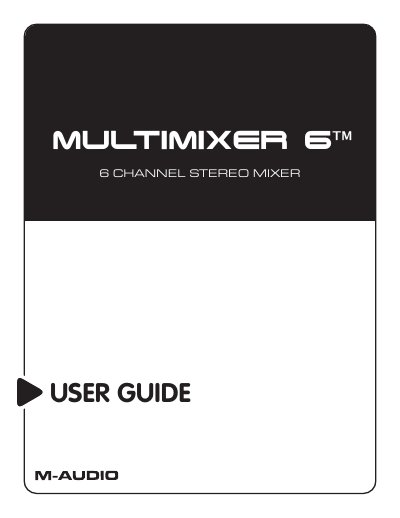

M-AUDIO MULTIMIXER 6 User Guide
Update: 29 September, 2023
MultiMixer6 is an extremely low noise, professional quality, 6 channel stereo line mixer. The 6 panable inputs enable you to place a sound source anywhere in the stereo field. MultiMixer6 is ideal for multimedia applications or for an onstage mix of multiple line-level sound sources. MultiMixer6 comes with an external 9 volt, 300 milliamp ac power adaptor. This adaptor should be plugged into a standard wall socket and then into the MultiMixer6's back power jack. When this is done the MultiMixer6 power LED will light. MultiMixer6 will not work unless power is plugged in. The MultiMixer6 design makes it very versatile. Here are a few typical examples of how you might use MultiMixer6: Multimedia Mixing Many multimedia applications use multiple sound sources. In a typical multimedia application, plug the MultiMixer6 in as follows: 1. Connect the stereo output from your computer soundcard to MultiMixer6 Inputs 1 and 2. 2. Connect outputs from your MIDI tone module to inputs 3 & 4. 3. And connect the audio output from a CD-ROM to inputs 5 & 6. Now you can use the Multimixer6 pan pots to position the sounds wherever you want them, and the gain pots to adjust the levels so the overall sound is balanced. Live Sound Mixing Although the MultiMixer6 will not take a mic level signal, it has many uses in live performance. Here are a couple of examples: 1. Mixing your separate tone modules to a single stereo signal. 2. Combining y
Brand: M-AUDIO
File format: PDF
Size: 77 KB
MD5 Checksum: 67B0C61C85B48BAF404EDBA9D301104B
Publication date: 04 July, 2012
Downloads: -
PDF Link: M-AUDIO MULTIMIXER 6 User Guide PDF
