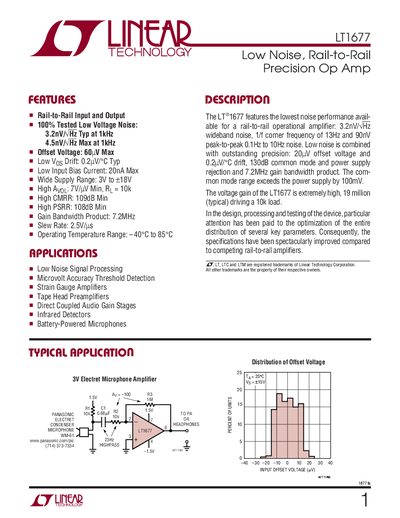

LINEAR TECHNOLOGY LT1677 1677fa Low Noise Rail-to-Rail Precision Op Amp Manual

Update: 30 September, 2023

The LT®1677 features the lowest noise performance available for a rail-to-rail operational amplifier: 3.2nV/√Hz wideband noise, 1/f corner frequency of 13Hz and 90nV peak-to-peak 0.1Hz to 10Hz noise. Low noise is combined with outstanding precision: 20µV offset voltage and 0.2µV/°C drift, 130dB common mode and power supply rejection and 7.2MHz gain bandwidth product. The com- mon mode range exceeds the power supply by 100mV. The voltage gain of the LT1677 is extremely high, 19 million (typical) driving a 10k load. In the design, processing and testing of the device, particular attention has been paid to the optimization of the entire distribution of several key parameters. Consequently, the specifications have been spectacularly improved compared to competing rail-to-rail amplifiers.

Brand: LINEAR

File format: PDF

Size: 540 KB

MD5 Checksum: FAE697D33218ED84380CE1195735D7C7

Publication date: 02 May, 2012
