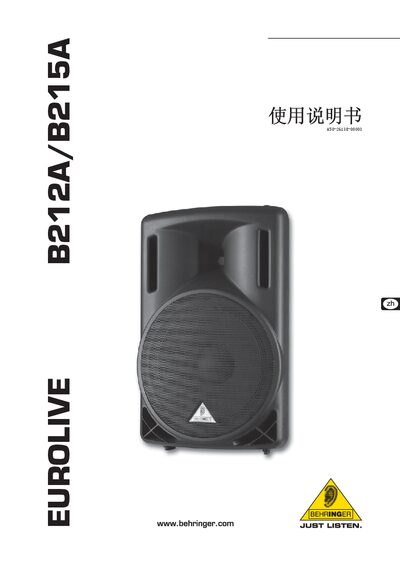

Chinese user manual for the Behringer EUROLIVE B212A/B215A active loudspeakers, covering safety, connections, applications and technical data.
This manual provides important safety instructions, proper installation guidance, and operating procedures for the Behringer EUROLIVE B212A and B215A active loudspeakers. It explains how to position the speakers, connect power and audio inputs, and adjust level controls safely.
The document also includes application examples for single and multiple speaker setups, a detailed list of technical specifications, and warranty information. All maintenance and repair work should be performed by qualified personnel. This manual is written in Chinese.
| Low‑frequency output power (RMS, 1% THD) | 200 W @ 8 Ω |
|---|---|
| High‑frequency output power (RMS, 1% THD) | 50 W @ 8 Ω |
| Peak power (low frequency) | 320 W @ 8 Ω |
| Peak power (high frequency) | 80 W @ 8 Ω |
| Input sensitivity (XLR) | -40 dBu to +4 dBu |
| Input impedance | 20 kΩ |
| Frequency range (B212A) | 65 Hz – 20 kHz |
| Maximum SPL (B212A) | 125 dB @ 1 m |
| Power supply voltage | 100‑120 V AC (50/60 Hz) |
| Dimensions (B212A) | 550 mm × 345 mm × 270 mm |
The B212A can produce up to 125 dB SPL at a distance of 1 meter.
