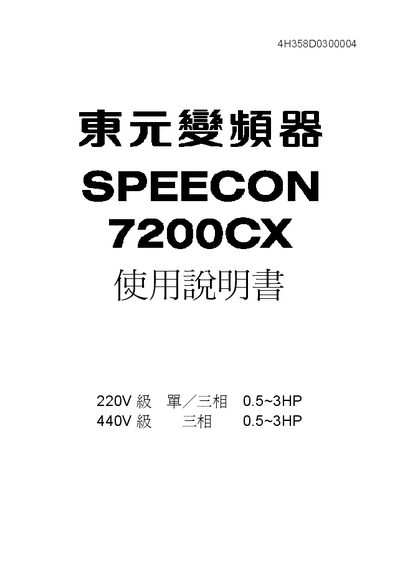

JNTS 7200CX Frequency Inverter User Manual
The JNTS 7200CX is a fully digital frequency inverter equipped with a detachable digital operator and optional 256‑step speed expansion card. The manual covers safety warnings, delivery inspection, and detailed descriptions of each component and terminal.
Installation guidelines specify required clearances, environmental conditions, and wiring methods for both power and control circuits. Operational sections explain the digital operator panel, parameter configuration, fault displays, and communication interfaces (RS‑485, RS‑232). Appendices provide wiring diagrams and instructions for the 256‑step speed control module. This manual is written in Chinese.
Covers: Safety Precautions · Inverter Description · Installation and Wiring · Technical Specifications · Physical Dimensions · Peripheral Interface Equipment
Latest 东元 manuals
JNTS 7200CX Frequency Inverter User Manual
User Manual 76 pages · 1.1 MB · ZHThis manual provides safety instructions, installation, wiring, parameter settings and troubleshooting for the JNTS 7200CX frequency inverter.
Which document do I need?
User Manual
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in 东元 manuals
How many speed steps can the 256‑step speed expansion card provide?
When the CX‑256 expansion card is installed, the inverter can be set to a maximum of 256 speed steps.
What clearance space is required for installing the 7200CX?
At least 100 mm of free space must be left around the unit on all sides to ensure proper ventilation.
