Featured U-PDC manuals

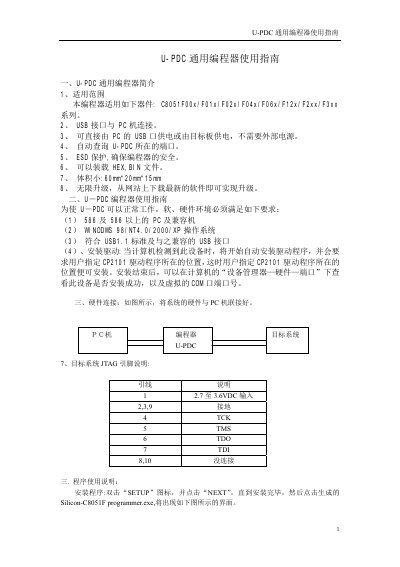

U-PDC Universal Programmer Programming Manual
The U-PDC Universal Programmer is a compact USB‑powered device (60mm × 20mm × 15mm) that supports programming of Silicon Labs C8051F00x/F01x/F02x/F04x/F06x/F12x/F2xx/F3xx series microcontrollers. It can be powered directly from the PC’s USB port or from the target board and works with HEX and BIN files on Windows 98/NT4.0/2000/XP systems that meet the USB 1.1 standard.
The manual guides users through driver installation (CP2101 driver), hardware connection, and software operation. It details menu commands for file handling, buffer editing, programming actions (read, write, erase, verify, lock, batch program), debugging, and configurable settings such as automatic serial‑number insertion for production runs. This manual is written in Chinese.
Covers: Introduction · Hardware Connection · Driver Installation · Software Installation · Menu Commands – File · Menu Commands – Buffer
Latest U-PDC manuals
U-PDC Universal Programmer Programming Manual
Programming Manual 7 pages · 215 KB · ZHThe U-PDC Universal Programmer manual explains setup, connection, and programming functions for C8051F series chips.
Which document do I need?
Programming Manual
Instruction set, parameters and examples for configuring or programming the device.
Questions answered in U-PDC manuals
How do I install the driver for the programmer?
When the computer detects the device it automatically starts driver installation and asks you to specify the location of the CP2101 driver.
How can I load a HEX file for programming?
Select the File menu and choose “Load HEX File” to load a hexadecimal file into the buffer.
