Featured TI manuals
Texas Instruments Stellaris LM4F Timer Programming Guide
The document introduces the timer module of the Stellaris LM4F series, describing the available 32/16‑bit and 64/32‑bit timers, their operating modes (one‑shot, periodic, real‑time clock) and split‑pair configurations. It also covers the capture mode, including edge‑count and edge‑time functions, and the PWM mode.
Programming details are provided, such as enabling the timer peripheral, configuring mode and count range, setting up interrupts, and example code that generates a one‑second UART output using a wide timer. An appendix supplies a console‑initialization routine for UART communication. This manual is written in Chinese.
Covers: Function Overview · Timer Mode · Capture Mode · Example Programs · Appendix
Latest TI manuals

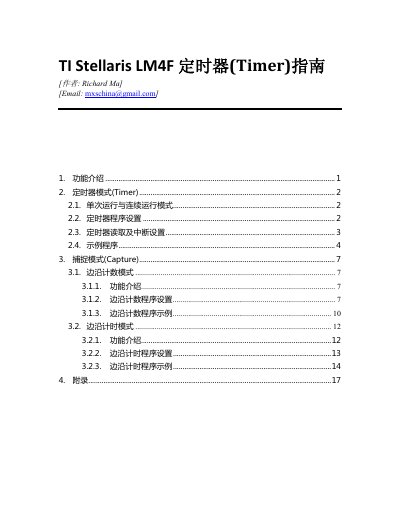

Texas Instruments Stellaris LM4F Timer Programming Guide
Programming Manual 18 pages · 548 KB · ZHThis guide explains the timer and capture features of the Texas Instruments Stellaris LM4F microcontroller and provides programming examples.
Which document do I need?
Programming Manual
Instruction set, parameters and examples for configuring or programming the device.
Questions answered in TI manuals
How do I enable a timer peripheral on the LM4F?
Call SysCtlPeripheralEnable with the timer’s peripheral identifier, for example SysCtlPeripheralEnable(SYSCTL_PERIPH_WTIMER0).
From: Texas Instruments Stellaris LM4F Timer Programming Guide
How can I configure a timer for one‑shot mode?
Use TimerConfigure with the TIMER_CFG_ONE_SHOT (or TIMER_CFG_ONE_SHOT_UP) flag for the desired timer instance.
From: Texas Instruments Stellaris LM4F Timer Programming Guide
