TECHNOLOGIES Dual Output A-Series BWR Models High-Reliability 2" x 2" 15-20 Watt DC/DC Converters Manual

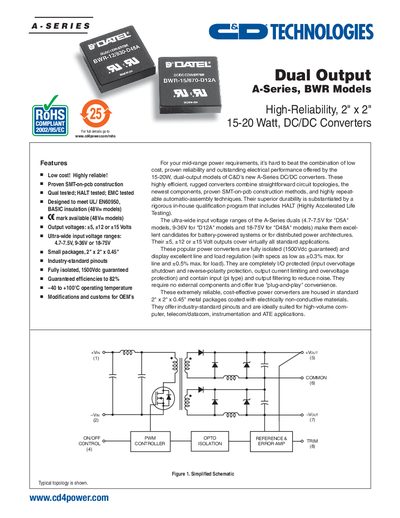

The C&D A‑Series dual‑output DC/DC converters provide 15‑20 W of power in a compact 2" × 2" × 0.45" metal package. They offer three output voltage options (±5 V, ±12 V, ±15 V) and ultra‑wide input ranges tailored to each model (D5A, D12A, D48A). All devices are fully isolated with a 1500 Vdc rating and feature built‑in protection such as over‑voltage shutdown and reverse‑polarity protection.

The datasheet includes detailed performance tables, mechanical drawings, and application notes on filtering, output trimming, synchronization, and EMC compliance. C&D’s in‑house HALT testing and quality‑assurance processes ensure high reliability for high‑volume OEM applications in telecom, computer, and industrial markets.

Covers: Features · Performance Specifications and Ordering Guide · Absolute Maximum Ratings · Filtering and Noise Reduction · Input/Output Connections · On/Off Control
