Featured Schindler manuals

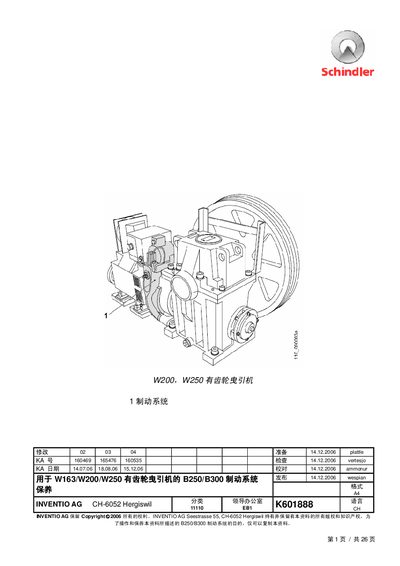

INVENTIO B250/B300 Brake System Manual for Schindler W200/W250
This manual describes the proper installation, maintenance, inspection, adjustment and replacement procedures for the B250/B300 brake system that is fitted to Schindler W163, W200 and W250 geared traction elevators. It includes safety warnings, responsibilities, and required mechanical and electrical interfaces.
The document is organized into sections covering required safety symbols, an overview of the brake system, mechanical and electrical interfaces, routine maintenance tasks, adjustment steps, part replacement, troubleshooting, and disposal of materials. It provides detailed adjustment tolerances for single‑ and double‑core electromagnetic coils and lists all spare parts with identification numbers. This manual is written in Chinese.
Covers: Important Content · Overview · Required Interfaces · Maintenance · Inspection · Adjustment Work
Latest Schindler manuals
INVENTIO B250/B300 Brake System Manual for Schindler W200/W250
Service Manual 26 pages · 540 KB · ZHService manual with maintenance, inspection, adjustment and replacement instructions for the INVENTIO B250/B300 brake system used on Schindler W200 and W250…
Which document do I need?
Service Manual
Disassembly, diagnostics and part numbers, for repair.
Questions answered in Schindler manuals
What is the rated voltage for the brake system?
The brake system is rated for 80 V ± 10 % and 180 V ± 10 %.
From: INVENTIO B250/B300 Brake System Manual for Schindler W200/W250
How often should the rubber dust cover be inspected?
The rubber dust cover should be inspected every 12 months.
From: INVENTIO B250/B300 Brake System Manual for Schindler W200/W250
