Featured RIO-47xxx manuals

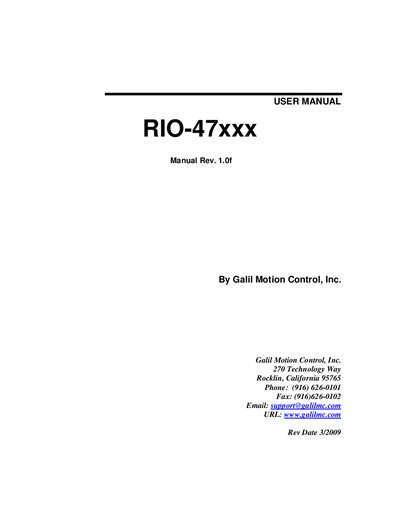

Galil RIO-47xxx User Manual
The RIO-47xxx is a programmable remote I/O controller that connects to other Galil boards via Ethernet. It provides digital and analog I/O on separate I/O boards and is programmed using the same software as Galil motion controllers.
The manual includes chapters on getting started, communication interfaces (RS‑232, Ethernet, Modbus), detailed I/O specifications, application programming, electrical specifications, connector pinouts, and optional accessories.
Covers: Overview · Getting Started · Communication Interfaces · I/O Specifications · Application Programming · Electrical Specifications
Latest RIO-47xxx manuals
Galil RIO-47xxx User Manual
User Manual 98 pages · 998 KB · ENUser manual for the Galil RIO-47xxx remote I/O controller covering installation, communication, I/O options and programming.
Which document do I need?
User Manual
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in RIO-47xxx manuals
How do I configure the power connection for the RIO board?
Connect the power using the 2‑pin Molex connector for 18‑36 VDC, as described in the power connection step.
What are the options for digital I/O on the RIO‑471xx models?
Options include 8 high‑power optoisolated outputs, 8 low‑power optoisolated outputs, and 16 optoisolated digital inputs.
