Featured PROMTEC-μ-ICC manuals

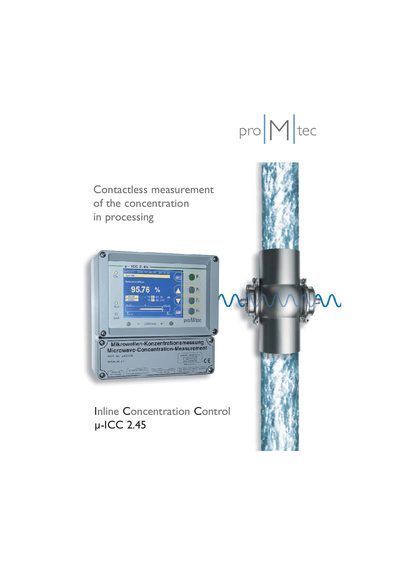

Promtec u-ICC 2.45 Datasheet
The u-ICC 2.45 provides contactless measurement of concentration, density, dry‑matter or water content in liquids, pastes or suspensions by radiating microwaves through the whole cross‑section of a pipeline. The phase shift and attenuation of the microwaves correlate directly with the material’s water content, delivering a representative measurement without optical transparency requirements.
The system consists of a central controller and up to four isolated microwave modules that can be installed up to 150 m away via coaxial cable. All measurement values are available digitally through RS‑232 and optionally via a 0‑20 mA current loop. The robust aluminium housing (IP65) and multilingual menu make the device suitable for harsh industrial environments.
Covers: Measurement Principle · Controller Features · Microwave Module · Installation Options · Technical Data · Modular Extension
Latest PROMTEC-μ-ICC manuals
Promtec u-ICC 2.45 Datasheet
Datasheet 6 pages · 682 KB · ENThe Promtec u-ICC 2.45 datasheet details a contactless microwave concentration measurement system for inline process control.
Which document do I need?
Datasheet
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in PROMTEC-μ-ICC manuals
How many measuring points can the u-ICC 2.45 control?
The controller can handle between one and four measuring points.
What communication interface is used for data transfer?
Data is transferred via an RS‑232 interface at 9600 baud.
