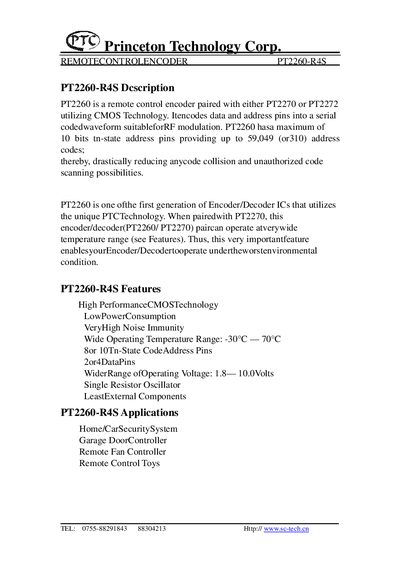

Princeton PT2260-R4S Datasheet
The PT2260-R4S is a remote‑control encoder from Princeton that converts address and data pins into a serial coded waveform for RF modulation. It uses high‑performance CMOS technology and can be paired with PT2270 or PT2272 decoders.
Key features include low power consumption, very high noise immunity, a wide operating temperature range of –30 °C to 70 °C, 8 or 10 address pins, 2 or 4 data pins, and an operating voltage from 1.8 V to 10 V. Typical applications are home and car security systems, garage‑door controllers, remote fan controllers, and toy remote controls.
Covers: Description · Features · Applications · Pin Configurations · Application Circuits
