Featured OnCell manuals

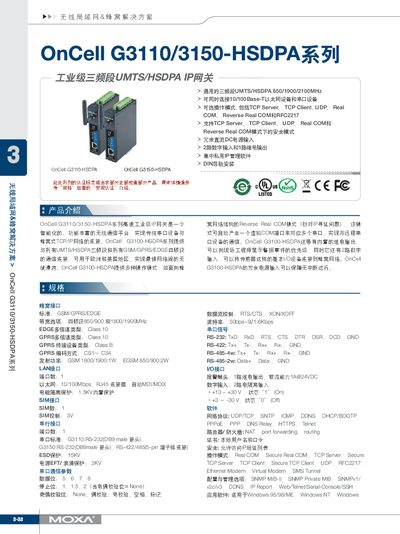

Moxa OnCell G3110/3150-HSDPA User Manual
The OnCell G3110/3150-HSDPA series is an industrial‑grade three‑band UMTS/HSDPA gateway that provides Ethernet and serial connectivity for remote monitoring and control. It supports 850/1900/2100 MHz cellular bands, up to 10/100 Mbps Ethernet, and multiple serial interfaces, with optional operation modes such as TCP Server, TCP Client, UDP, Real COM and RFC2217.
The device is DIN‑rail mountable, powered by 12‑48 VDC, and includes two digital inputs, one relay output, and comprehensive management software with SNMP, web, and SSH access. Certifications include EN55022, EN61000‑4‑2, and FCC Part 15. This manual is written in Chinese.
Covers: Product Overview · Cellular Interface · LAN Interface · SIM Interface · Serial Interface · IO Interface

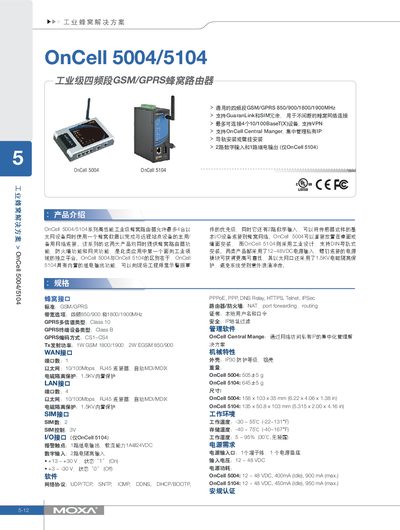

Moxa OnCell 5004/5104 User Manual
This manual describes the OnCell 5004 and 5104 industrial‑grade cellular routers. Both models support four GSM/GPRS frequency bands (850/900/1800/1900 MHz), up to four 10/100 Mbps Ethernet ports, and optional VPN connectivity. The 5104 adds two isolated digital inputs and a 1 A @ 24 VDC relay output for alarm signaling.
Installation options include DIN‑rail or wall‑mounting, with a 12‑48 VDC power input and 1.5 kV Ethernet isolation. The document also lists mechanical dimensions, environmental limits, safety certifications, and ordering information. This manual is written in Chinese.
Covers: Specifications · GSM/GPRS Interface · WAN Interface · LAN Interface · SIM Interface · MO Interface
Latest OnCell manuals
Moxa OnCell G3110/3150-HSDPA User Manual
User Manual 2 pages · 1.5 MB · ZHUser manual for Moxa OnCell G3110/3150-HSDPA industrial UMTS/HSDPA gateway.
Moxa OnCell 5004/5104 User Manual
User Manual 2 pages · 610 KB · ZHThe Moxa OnCell 5004/5104 User Manual provides specifications, installation options, and configuration details for the industrial GSM/GPRS routers.
Which document do I need?
User Manual
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in OnCell manuals
What cellular frequency bands does the OnCell gateway support?
It supports the three UMTS/HSDPA bands 850 MHz, 1900 MHz and 2100 MHz.
What serial interfaces are available on the G3150 model?
The G3150 provides an RS‑232 DB9 male connector and an RS‑422/485 5‑pin connector.
What GSM/GPRS frequency bands does the OnCell 5004/5104 support?
It supports the four GSM/GPRS bands 850 MHz, 900 MHz, 1800 MHz and 1900 MHz.
How many Ethernet ports are available on the OnCell routers?
Each router provides up to four 10/100 Mbps Ethernet ports.
