Featured NETLink manuals

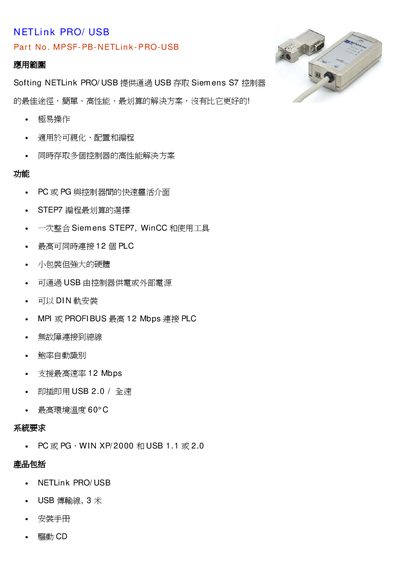

Softing MPSF-PB-NETLink-PRO-USB Product Leaflet
The NETLink PRO/USB is a USB‑based communication module that enables PC or PC‑based HMI systems to access Siemens S7 controllers directly via USB. It can be powered from the controller’s USB port or an external supply and is designed for DIN‑rail mounting.
Key features include easy operation, simultaneous access to up to 12 PLCs, a maximum data rate of 12 Mbps, USB 2.0 full‑speed interface, and compatibility with Windows XP/2000 and USB 1.1/2.0. The device also integrates STEP 7, WinCC and other Siemens tools in a single solution. This manual is written in Chinese.
Covers: Product Overview · Key Features · Technical Specifications · Installation Options · System Requirements · Package Contents

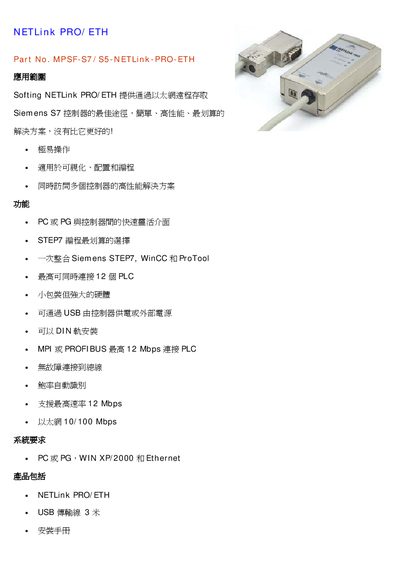

Softing MPSF-S7/S5-NETLink-PRO-ETH Installation Guide
The Softing NETLink PRO/ETH is a compact Ethernet communication module that enables PC or PG to access Siemens S7 and S5 PLCs. It supports up to 12 simultaneous PLC connections and can be powered via USB from the controller or an external supply. The device mounts on a DIN rail and offers 10/100 Mbps Ethernet as well as MPI/PROFIBUS up to 12 Mbps.
The package includes the NETLink PRO/ETH unit, a 3 m USB cable, a cross‑over Ethernet cable, and an installation manual. System requirements are a PC or PG running Windows XP/2000 with Ethernet capability. Technical documentation and drivers are available for download from the manufacturer’s website. This manual is written in Chinese.
Covers: Application and Scope · System Requirements · Product Includes · Installation Instructions · Technical Documentation · Order Numbers
Latest NETLink manuals
Softing MPSF-PB-NETLink-PRO-USB Product Leaflet
Product Leaflet 2 pages · 135 KB · ZHThe Softing NETLink PRO/USB (MPSF-PB-NETLink-PRO-USB) provides high‑performance USB access to Siemens S7 PLCs, supporting up to 12 devices.
Softing MPSF-S7/S5-NETLink-PRO-ETH Installation Guide
Installation Guide 2 pages · 160 KB · ZHInstallation guide for Softing NETLink PRO/ETH (model MPSF‑S7/S5) providing Ethernet access to Siemens S7 controllers.
Which document do I need?
Installation Guide
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in NETLink manuals
How many PLCs can be connected at the same time?
The device can connect up to 12 Siemens S7 PLCs simultaneously.
What is the maximum communication speed?
The maximum data rate is 12 Mbps.
Can the unit be powered via USB?
Yes, it can be powered from the controller through USB or from an external power source.
What are the system requirements for using the NETLink PRO/ETH?
A PC or PG running Windows XP/2000 with an Ethernet interface is required.
