Featured FMBA-01 manuals

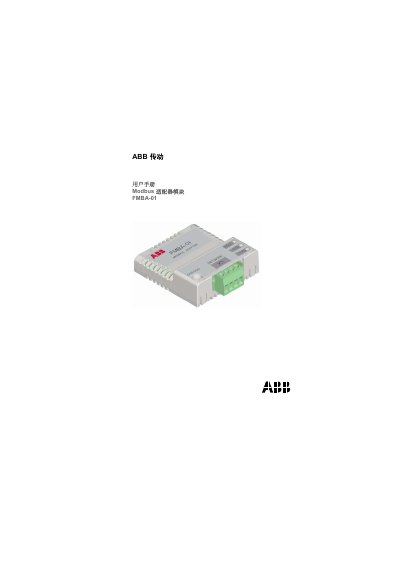

ABB FMBA-01 Modbus Adapter Module User Manual
This manual provides safety guidelines, installation procedures, and wiring instructions for the ABB FMBA-01 Modbus adapter module. It is intended for qualified electrical engineers and technicians who work with ABB drive systems.
The document also contains technical specifications, LED diagnostic indicators, and fault‑diagnosis information to help users configure and maintain the module in RS‑485 networks. This manual is written in Chinese.
Covers: Safety Information · Overview · RS‑485 Standard · FMBA‑01 Adapter Module Description · Compatibility · Shipping List
Latest FMBA-01 manuals
ABB FMBA-01 Modbus Adapter Module User Manual
User Manual 19 pages · 260 KB · ZHUser manual for the ABB FMBA-01 Modbus adapter module, covering safety, installation, wiring and technical data.
Which document do I need?
User Manual
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in FMBA-01 manuals
What safety precautions are required before working on the FMBA‑01?
All electrical installation and maintenance must be performed by qualified electrical engineers, and the equipment must be properly grounded before any work.
How many LED indicators does the FMBA‑01 have and what do they show?
The module has three green LEDs: HOST indicates the module is powered, RXD flashes when data is received from the bus, and TXD flashes when data is transmitted.
