Featured EPHC10-EC manuals

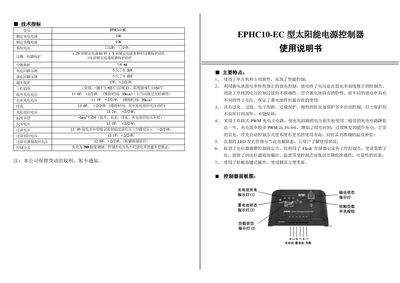

EPHC10-EC solar power supply controller Manual
The EEHC10-EC controller is designed for solar DC power systems and features intelligent control using a micro‑controller and dedicated software. It provides overload, short‑circuit, reverse‑polarity, over‑charge and over‑discharge protection, as well as temperature compensation and PWM charging for high efficiency.
The manual covers installation dimensions (140 × 90.5 mm), wiring guidelines, connection procedures for the battery and solar panel, operation of the touch‑button interface, indicator LED functions, and common fault diagnosis with recovery steps. This manual is written in Chinese.
Covers: Key Features · Control Method · Installation and Wiring · System Operation · Fault Diagnosis and Recovery
Latest EPHC10-EC manuals
EPHC10-EC solar power supply controller Manual
User Manual 2 pages · 235 KB · ZHUser manual for the EEHC10-EC solar power supply controller with installation, operation, and troubleshooting instructions.
Which document do I need?
User Manual
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in EPHC10-EC manuals
How should the battery be connected to the controller?
Connect the battery terminals to the controller’s battery terminals first, ensuring correct polarity; the second terminal is then connected to the battery. The load indicator (2) should light if the connection is correct.
What does the green flashing charging indicator mean?
A green fast‑flashing charging indicator (1) signals that the system voltage is too high and the user should follow the over‑voltage handling procedure.
