Featured CX manuals

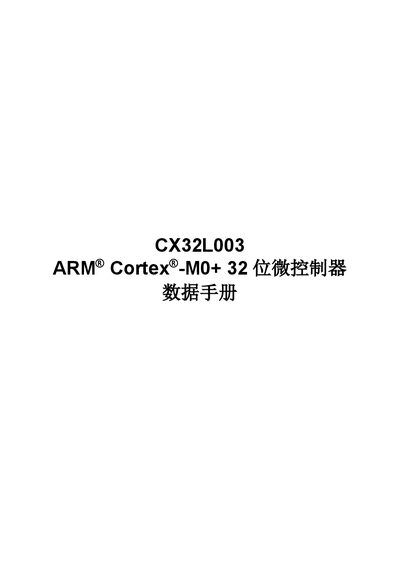

CX32L003 ARM Cortex-M0+ 32-bit MCU Datasheet
The CX32L003 is a 32‑bit microcontroller built around an ARM® Cortex®‑M0+ core that runs up to 24 MHz. It integrates up to 64 KB of embedded Flash, 4 KB SRAM, a 12‑bit 1 Msps SAR ADC, RTC, comparators, multiple UARTs, SPI, I²C, PWM and other peripherals, targeting low‑power applications.
The device operates from 2.5 V to 5.5 V, supports three power modes (Active, Sleep, Deep‑Sleep), and is offered in TSSOP‑20 and QFN‑20 packages with 16 GPIO pins in the 20‑pin versions. Detailed electrical characteristics, pin‑out tables and package information are provided in the following sections. This manual is written in Chinese.
Covers: Introduction · Product Feature Overview · System and Memory Overview · Pin Configuration and Function Description · Electrical Characteristics · Package Characteristics
Latest CX manuals
CX32L003 ARM Cortex-M0+ 32-bit MCU Datasheet
Datasheet 47 pages · 2.4 MB · ZHTechnical data sheet for the CX32L003 low‑power 32‑bit ARM Cortex‑M0+ microcontroller.
CX 8- channel professional power amplifier Manual
Which document do I need?
Datasheet
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in CX manuals
What is the operating voltage range of the CX32L003?
The CX32L003 works from 2.5 V to 5.5 V.
How many GPIO pins are available in the 20‑pin package?
The 20‑pin TSSOP/QFN package provides 16 general‑purpose I/O pins.
