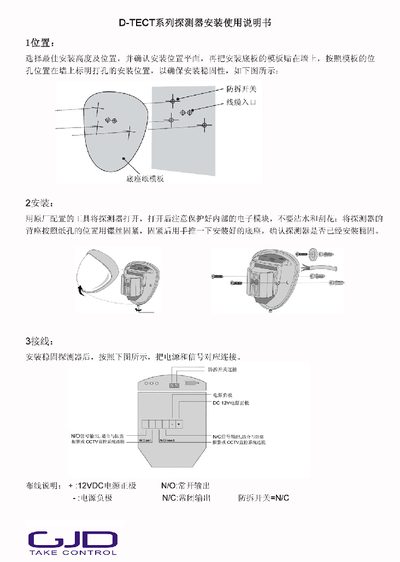

CJD D-TECT Series Detector Installation Guide
The guide explains how to select the optimal mounting height and position, mark and drill mounting holes, and securely attach the detector base using the provided template and fasteners. After mounting, it details the wiring connections for 12 V DC power, signal outputs, and the anti‑tamper switch.
It also covers the power‑on self‑test, programming procedures using the built‑in programming key, and how to adjust detection distance, pulse count, and LED status. Final steps include securing the outer housing and confirming the installation. This manual is written in Chinese.
Covers: Mounting Position · Wiring Connections · Power‑On Test · Programming Procedure · Adjustable Detection Settings · Final Installation
Latest CJD manuals
CJD D-TECT Series Detector Installation Guide
Installation Guide 3 pages · 759 KB · ZHInstallation and setup instructions for the CJD D-TECT series detector, including wiring, positioning, and programming.
Which document do I need?
Installation Guide
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in CJD manuals
How do I change the detection distance?
Enter programming mode by pressing the programming key, then use the rapid LED flashes to select the desired distance (e.g., 20 m) and confirm with two quick flashes.
What wiring connections are required for the detector?
Connect +12 VDC to the positive terminal, the negative terminal to ground, N/O to the normally open output, N/C to the normally closed output, and the anti‑tamper switch to N/C.
