Featured CELLFLEX manuals

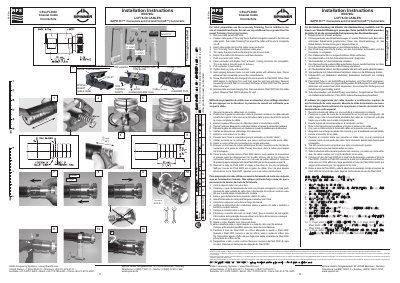

CELLFLEX LCF78-50 Coaxial Cable Connectors Installation Guide
This guide explains how to prepare the coaxial cable using the supplied trimming tool and standard hand tools. Steps include removing the jacket, positioning the collet guide, trimming the cable, and flaring the outer conductor.
After preparation, the connector is pushed onto the cable until a double‑click is heard, indicating a locked fit. The back nut is tightened with a wrench, and the opening between the nut and jacket is sealed with adhesive tape and Plast 2000 sealant.
Covers: Cable preparation · Trimming tool usage · Connector insertion and locking · Back nut tightening · Sealing with adhesive tape and Plast 2000 · Safety and environmental notes

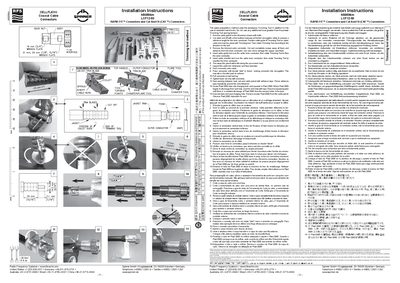

CELLFLEX M30596m LCF12-50 Coaxial Cable Connectors Installation Guide
The guide explains how to prepare the coaxial cable using a knife, a fine‑toothed hacksaw and the special Trimming Tool. It describes removing the outer jacket, cutting the cable to the reference length, and trimming both the outer and inner conductors while preserving the copper‑clad finish.
After the cable is prepared, the connector is inserted, pressed until a double "click" is heard, the back nut is tightened with a wrench, and the assembly is sealed with adhesive tape and a Plast 2000 silicone tube to ensure a reliable, waterproof connection.
Covers: Cable preparation · Trimming tool usage · Connector insertion · Back nut tightening · Sealing with adhesive tape · Plast 2000 silicone tube application
Latest CELLFLEX manuals
CELLFLEX LCF78-50 Coaxial Cable Connectors Installation Guide
Installation Guide 2 pages · 845 KB · ENInstallation guide for CELLFLEX LCF78-50 coaxial cable connectors, covering cable preparation, connector insertion, and sealing steps.
CELLFLEX M30596m LCF12-50 Coaxial Cable Connectors Installation Guide
Installation Guide 2 pages · 878 KB · ENInstallation guide for CELLFLEX M30596m LCF12-50 coaxial cable connectors, detailing cable preparation, trimming, and connector assembly steps.
Which document do I need?
Installation Guide
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in CELLFLEX manuals
What tool is used to trim the cable jacket?
A trimming tool with a preset spring tension is used, together with standard hand tools.
From: CELLFLEX LCF78-50 Coaxial Cable Connectors Installation Guide
How should the opening between the back nut and cable jacket be sealed?
Seal the opening with adhesive tape, wrapping the tape around the circumference and piercing it several times.
From: CELLFLEX LCF78-50 Coaxial Cable Connectors Installation Guide
How should the cable jacket be removed?
Cut the cable jacket with a knife to the dimension shown in the guide.
From: CELLFLEX M30596m LCF12-50 Coaxial Cable Connectors Installation Guide
What tool is used to trim the outer conductor?
Use the Trimming Tool; do not apply force greater than its preset spring tension.
From: CELLFLEX M30596m LCF12-50 Coaxial Cable Connectors Installation Guide
