Featured ASSA manuals

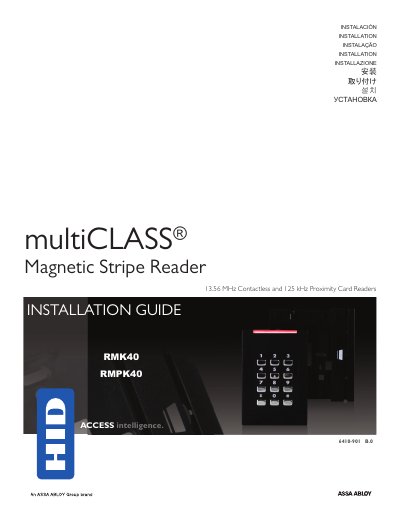

HID Global RMK40 RMPK40 Magnetic Stripe Reader Installation Guide
This guide provides step‑by‑step instructions for installing the RMK40 and RMPK40 magnetic stripe readers. It includes a complete parts list, wiring diagrams, mounting procedures, power‑up testing, and details on required expansion modules.
Key sections cover specifications (input voltage, current, temperature range), cable length limits, safety cautions, and configuration of GPIO and Wiegand interfaces. The document is multilingual and intended for installers and system integrators working with HID access‑control hardware. This manual is written in Chinese.
Covers: Parts List · Specifications · Mounting · Wiring · Power & Testing · Expansion Module Installation

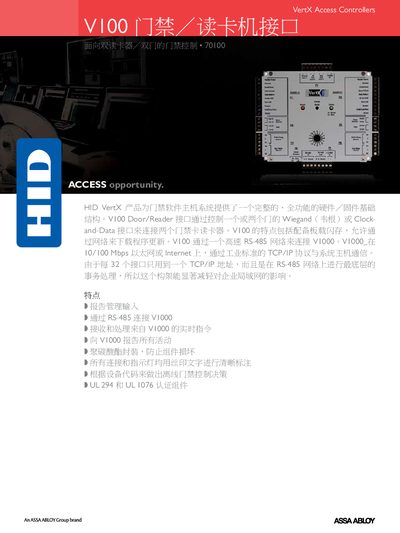

HID Global VertX V100 Access Controller User Manual
This manual describes the VertX V100 access controller, a full‑function hardware/firmware platform for door security systems. It explains the V100's two door/reader interfaces, RS‑485 networking to V1000, and the TCPVIP protocol used for communication with the host system.
Installation guidelines cover mounting the unit in a NEMA‑4 enclosure, power requirements, cable selections, and environmental limits. The document also lists certifications, warranty information, and part numbers for service and replacement. This manual is written in Chinese.
Covers: Features · Installation · Wiring Connections · Power Supply · Environmental Conditions · Communications
Latest ASSA manuals
HID Global RMK40 RMPK40 Magnetic Stripe Reader Installation Guide
Installation Guide 10 pages · 2.6 MB · ZHInstallation guide for HID Global RMK40 and RMPK40 magnetic stripe readers, covering parts, wiring, mounting, power and expansion modules.
HID Global VertX V100 Access Controller User Manual
User Manual 2 pages · 356 KB · ZHThe HID Global VertX V100 Access Controller User Manual provides installation, wiring, specifications, and operation details for the V100 controller.
ASSA ABLOY MaxiProx Reader Manual
Which document do I need?
Installation Guide
Mounting, wiring and first power-up. Read it before the hardware goes in.
User Manual
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in ASSA manuals
What input voltage range does the reader accept?
The reader operates from 5 VDC to 16 VDC.
From: HID Global RMK40 RMPK40 Magnetic Stripe Reader Installation Guide
How many wire splices are allowed for the magnetic stripe reader?
Up to 9 wire splices (pigtail) are recommended.
From: HID Global RMK40 RMPK40 Magnetic Stripe Reader Installation Guide
What is the maximum RS‑485 cable length for the V100 controller?
The RS‑485 connection can reach up to 1220 m (4000 ft) when using Belden 3105A cable.
How many door/reader interfaces does the V100 support?
The V100 provides two Wiegand (Clock‑and‑Data) ports for two readers.
