Featured 深圳智微电子科技有限公司 manuals
Shenzhen Zhiwei Electronics Technology TXHX13‑ZW20DX1 High‑Speed Carrier Communication Single‑Phase Module Specification
The TXHX13‑ZW20DX1 module is designed for smart‑grid electricity information collection systems, providing high‑performance, low‑power carrier communication for single‑phase smart meters. It interfaces with concentrator modules to deliver meter data, tariff updates, event reporting, and remote firmware upgrades.
Key technical features include OFDM signal modulation, four selectable working bands (0.7‑2.93 MHz, 2.441‑5.615 MHz, 1.758‑2.93 MHz, 1.953‑11.96 MHz), communication rates from 55 kbps to 10 Mbps, and a CSMA/CA access mechanism. The module operates from –40 °C to +70 °C, consumes ≤1.5 W dynamic and ≤0.4 W static power, and can communicate up to 200 m (500 m max) over power‑line channels. This manual is written in Chinese.
Covers: 功能介绍 · 技术主要指标及特点 · 应用业务功能 · 电气性能指标 · 本地数据接口 · 弱电接口

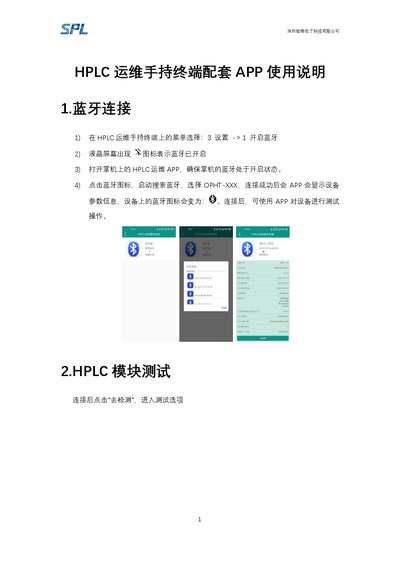

Zhiwei Electronics HPLC运维手持终端 Handheld Terminal User Manual
The guide starts with Bluetooth connection steps: enable Bluetooth in the terminal menu, launch the HPLC运维 APP, and pair with the device (OPHT‑XXX). Once connected, the APP displays device parameters and allows testing operations.
It then describes HPLC module testing, whole‑machine fault detection, and network testing (both to a physical concentrator and a virtual concentrator). Detailed functions include reading measurement points, retrieving and setting concentrator parameters, performing concurrent meter reading, and upgrading module firmware. This manual is written in Chinese.
Covers: Bluetooth Connection · HPLC Module Testing · Whole‑Machine Fault Detection · Network Testing – Concentrator · Network Testing – Virtual Concentrator · Function Description
Latest 深圳智微电子科技有限公司 manuals
Shenzhen Zhiwei Electronics Technology TXHX13‑ZW20DX1 High‑Speed Carrier Communication Single‑Phase Module Specification
Datasheet 6 pages · 605 KB · ZHThe TXHX13‑ZW20DX1 is a high‑speed carrier communication single‑phase module with OFDM modulation, 0.7‑12 MHz carrier range, up to 10 Mbps data rate, and…
Zhiwei Electronics HPLC运维手持终端 Handheld Terminal User Manual
User Manual 7 pages · 648 KB · ZHThis manual explains how to use the Zhiwei Electronics HPLC handheld terminal, covering Bluetooth pairing, module testing, fault detection, and network checks.
