Featured 北京落木源电子技术有限公司 manuals

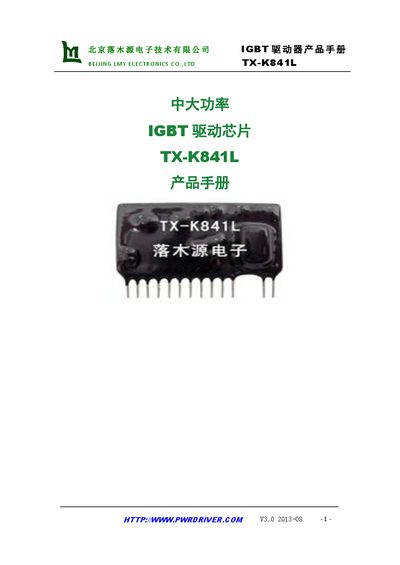

Beijing Luomu Yuan TX-K841L IGBT Driver Product Manual
This product manual describes the TX‑K841L IGBT driver developed by Beijing Luomu Yuan Electronics. It includes an overview of the driver, its principle diagram, electrical parameters, output waveforms, mechanical dimensions, pin assignments, and recommended application circuits.
The document also lists related products, short‑circuit protection features, and answers common questions about operation and installation. All data are presented in Chinese with reference to the manufacturer's website. This manual is written in Chinese.
Covers: Overview · Principle Diagram · Electrical Parameters · Output Waveform · Size and Pin Description · Application Circuit
Beijing Luomu Yuan TX-DA102D IGBT Driver User Manual
The TX-DA102D series is a high‑power IGBT driver board that can drive any IGBT below 1700 V. It offers up to 4.5 W per channel, 30 A output current, three‑stage over‑current protection, and configurable gate‑charge settings. The board works with a single 12‑30 V DC supply and supports various unit configurations (1, 2, 4, 6, 7 units).
The manual provides a block diagram, electrical parameters, waveform illustrations, mechanical dimensions, connector pin assignments, application circuit examples, and detailed instructions for setting protection thresholds, dead‑time, delay, soft‑shutdown and restart times. It also includes a FAQ section and references to related products. This manual is written in Chinese.
Covers: Overview · Block Diagram · Electrical Parameters · Waveform Diagrams · Mechanical Dimensions · Connector Pin Description

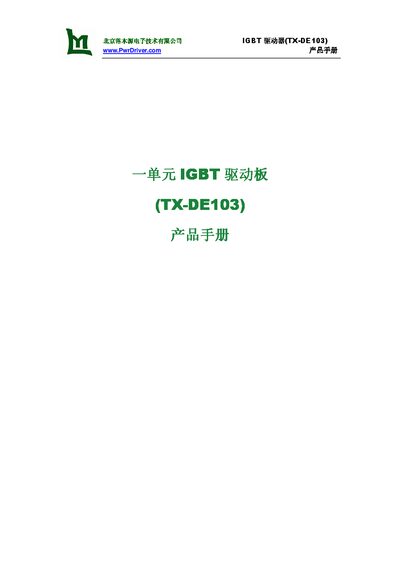

北京落木源电子技术有限公司 TX-DE103 IGBT Driver Product Manual
The TX-DE103 IGBT driver from 北京落木源电子技术有限公司 provides isolated one‑unit drive capability for 1200‑1700 V, 300 A IGBTs. It includes an auxiliary 15 V supply, transformer‑modulated PWM input, adjustable gate charge/discharge speeds, and soft‑shutdown short‑circuit protection.
The manual lists electrical parameters, input power requirements, operating temperature ranges, component layout, and connector pin‑outs, along with setup instructions for protection thresholds, blind‑zone time, and soft‑shutdown timing. This manual is written in Chinese.
Covers: 产品特点 · 驱动特性 · 输入电源 · 工作条件 · 短路保护特性参数 · 参数设置说明
Latest 北京落木源电子技术有限公司 manuals
Beijing Luomu Yuan TX-K841L IGBT Driver Product Manual
User Manual 8 pages · 722 KB · ZHThe manual provides specifications, wiring, and application guidance for the TX‑K841L mid‑power IGBT driver.
Beijing Luomu Yuan TX-DA102D IGBT Driver User Manual
User Manual 13 pages · 917 KB · ZHThe TX-DA102D IGBT driver manual from Beijing Luomu Yuan details specifications, protection features, wiring and setup for high‑power IGBT modules up to 1700 V.
北京落木源电子技术有限公司 TX-DE103 IGBT Driver Product Manual
User Manual 6 pages · 407 KB · ZHProduct manual for the TX-DE103 IGBT driver, detailing features, specifications, wiring and protection settings.
