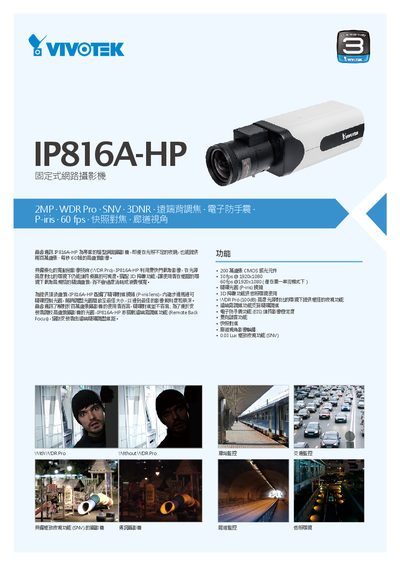

The VIVOTEK IP816A-HP is a 2 MP fixed network camera with WDR Pro, SNV, 3DNR, remote back focus, P‑iris lens and up to 60 fps video.
The IP816A-HP is a professional gun‑type network camera designed for low‑light environments such as stations, tunnels and traffic monitoring. It offers 2 MP resolution, WDR Pro (100 dB), SNV night vision, 3D noise reduction, remote back focus, electronic image stabilization (EIS), a P‑iris lens with precise aperture control, and dual‑way audio.
Technical details include a 1/1.9" CMOS sensor, 1920×1080 maximum resolution, 3.6‑17 mm varifocal lens (F1.5‑F2.8), 0.03 Lux minimum illumination (color), PoE/12 V/24 V power options, up to 10 simultaneous viewers, and a range of network protocols (IPv4/IPv6, ONVIF, etc.). The camera measures 230.2 mm × 70 mm × 63.5 mm and weighs 632 g. This manual is written in Chinese.
| Image Sensor | 200 MP CMOS |
|---|---|
| Maximum Resolution | 1920×1080 (2 MP) |
| Lens Type | Varifocal (3.6‑17 mm) |
| Aperture | F1.5‑F2.8 (auto) |
| Field of View (Horizontal) | 29°‑106° |
| Minimum Illumination (Color) | 0.03 Lux @ F1.5 |
| Power Options | DC 12 V / AC 24 V / PoE (IEEE 802.3af) |
| Power Consumption | DC 9.2 W, AC 15.4 W, PoE 12.2 W |
| Dimensions (W×H×D) | 70 mm × 63.5 mm × 230.2 mm |
| Weight | 632 g |
| Operating Temperature | -10 °C ~ 60 °C |
| Maximum Frame Rate | 60 fps @ 1920×1080 (single stream) |
| Simultaneous Viewers | Up to 10 clients |
The camera needs only 0.03 Lux at F1.5 for color imaging.
Up to ten client devices can view the stream simultaneously.
It can be powered by 12 V DC, 24 V AC, or PoE (IEEE 802.3af).
Yes, it includes full‑duplex (two‑way) audio communication.
