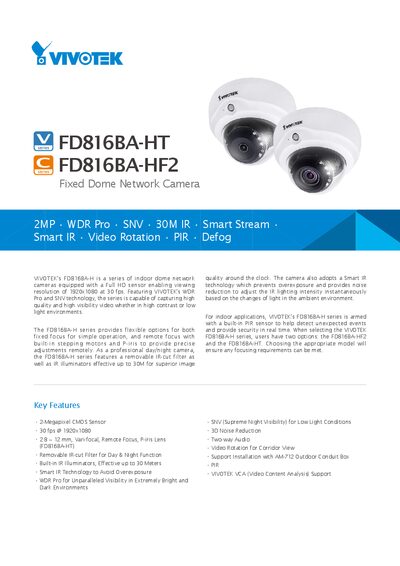

Detailed specifications and features of the VIVOTEK FD816BA-H indoor dome network camera.
The VIVOTEK FD816BA-H series is an indoor dome network camera equipped with a 2‑Megapixel CMOS sensor, offering 1920x1080 resolution at 30 fps. It includes advanced WDR Pro, SNV, Smart IR, and optional PIR sensor for day/night operation up to 30 m.
Technical details cover lens options (vari‑focal 2.8‑12 mm with P‑iris or fixed 2.8 mm), power consumption (13 W for HT, 9 W for HF2), PoE and DC input, and extensive network and video features such as H.264/MJPEG compression, up to four simultaneous streams, and two‑way audio.
| Maximum Resolution | 1920x1080 (2 MP) |
|---|---|
| Lens Type (HT model) | Vari‑focal 2.8‑12 mm, P‑iris |
| IR Illuminator Range | Up to 30 meters |
| Power Consumption | 13 W (HT) / 9 W (HF2) |
| Dimensions | Ø 138 mm × 103 mm |
| Weight | 541 g |
| Operating Temperature (Working) | -10 °C to 50 °C |
| Maximum Frame Rate | 30 fps @ 1920x1080 |
| Audio Capability | Two‑way full‑duplex audio (G.711, G.726) |
The built‑in IR illuminators are effective up to 30 meters.
Yes, it provides full‑duplex two‑way audio with G.711 and G.726 compression.
The camera can be powered via 12 V DC input or IEEE 802.3af/at PoE, consuming up to 13 W (HT) or 9 W (HF2).
It uses a vari‑focal 2.8‑12 mm lens with a P‑iris and remote focus.
