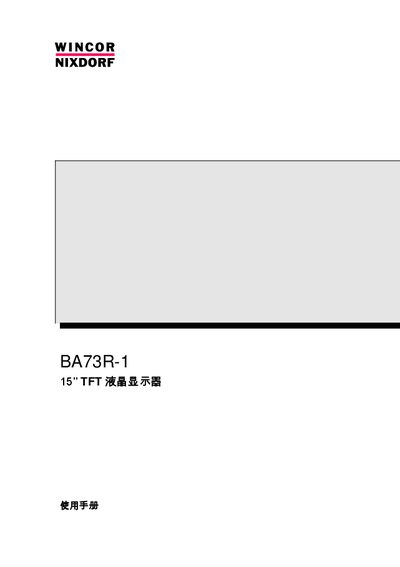

Wincor Nixdorf BA73R-1 15" TFT LCD Service Manual
Service Manual 47 pages · 647 KB · EN
This manual covers the 15" TFT LCD module used in the Wincor Nixdorf BA73R-1 ATM. It includes regulatory compliance details, connector pin assignments, and wiring information for proper installation and service.
The document also lists the part number, certification marks (FCC, CE, etc.), and safety instructions required for technicians working on the display unit.
Wincor BA73R-1 specifications
| Display size | 15" TFT |
|---|---|
| Model | BA73R-1 |
| Part number | 01750098987 |
| Year of release | 2006 |
Source: Wincor Nixdorf BA73R-1 15" TFT LCD Service Manual
All Wincor BA73R-1 documents by type
Service Manual 1
Disassembly, diagnostics and part numbers, for repair.
Other documents 1
Questions answered in these manuals
What is the part number for the BA73R-1 TFT LCD?
The part number is 01750098987.
From: Wincor Nixdorf BA73R-1 15" TFT LCD Service Manual
Which pins are used for the LCD interface?
Pin 1 = ARS, Pin 2 = RXD(A), Pin 3 = TXD(H), Pin 4 = HBS, Pin 5 = et, Pin 6 = He.
From: Wincor Nixdorf BA73R-1 15" TFT LCD Service Manual
