Start here

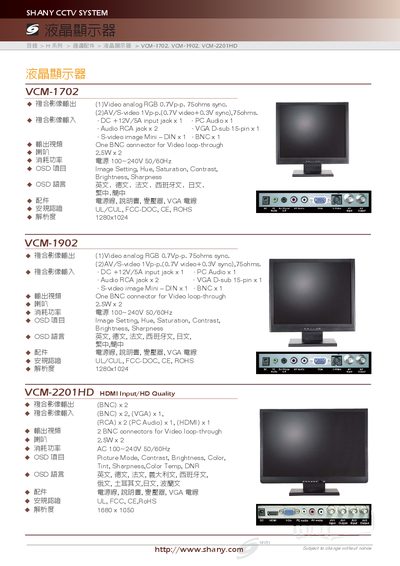

SHANY VCM-1702/VCM-1902/VCM-2201HD CCTV System LCD User Manual
The manual describes the video and audio input options, power requirements, connector layout, and on‑screen‑display (OSD) controls for SHANY CCTV LCD units. It lists supported video formats such as analog RGB and AV/S‑video, and details the available BNC, VGA, RCA and HDMI connectors.
Compliance markings (UL, FCC, CE, RoHS) and power specifications (100‑240 V AC, 12 V DC input, 2.5 W per channel) are also included, along with supported display resolutions up to 1680 × 1050.
SHANY VCM-1702 specifications
| Video analog RGB signal level | 0.7 Vp‑p, 75 Ω sync |
|---|---|
| AV/S‑video signal level | 1 Vp‑p (0.7 V video + 0.3 V sync), 750 Ω |
| DC power input | 12 V DC / 5 A |
| AC input voltage | 100‑240 V, 50/60 Hz |
| Maximum LCD resolution (VCM‑1702/1902) | 1280 × 1024 |
| Maximum LCD resolution (HDMI output) | 1680 × 1050 |
Source: SHANY VCM-1702/VCM-1902/VCM-2201HD CCTV System LCD User Manual
All SHANY VCM-1702 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What video input formats does the SHANY CCTV system support?
It supports analog RGB video (0.7 Vp‑p, 75 Ω sync) and AV/S‑video (1 Vp‑p, 750 Ω).
From: SHANY VCM-1702/VCM-1902/VCM-2201HD CCTV System LCD User Manual
What are the power requirements for the CCTV LCD units?
The units require a 12 V DC supply up to 5 A, consume 2.5 W per channel, and accept 100‑240 V AC at 50/60 Hz.
From: SHANY VCM-1702/VCM-1902/VCM-2201HD CCTV System LCD User Manual
